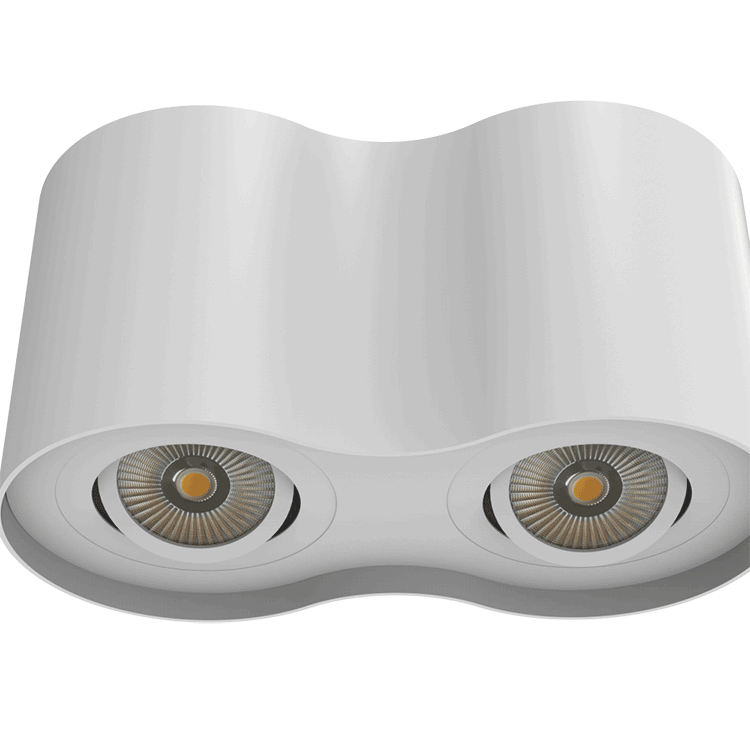

Surface Mounted Round Shape LED Downlight With 2 lamps
ITEM No.： DL4012
Watt : 8W/10W per lamp
Series : LED Spotlight
Shape : Circular
Application : Commercial
Features
– This is a circular surface-mounted spotlight that incorporates modern aesthetics. It has a beautifully curved shape, scientific
light distribution, good light output, uniform light output, high efficiency and energy saving.
– The light source can be adjusted 25° vertically and 360° horizontally to direct the beam in any direction to meet your diverse
lighting needs.
– The beam angle can be 12°, 24°, and suitable lamps can be selected according to actual needs to provide professional lighting.
– Patented convenient installation structure for quick and easy installation.
– Dimming: Non-Dimming/TRIAC Dimming.
– Adaptable 3″ and 4″ embedded box mounting.
Specifications
Lamp Body: Made of die-cast aluminum, the material is light and has good heat dissipation.
Power Supply: Constant current power supply, long life, low electromagnetic interference, low energy consumption, high
performance, short circuit and overcurrent protection.
Light Source: Using big brand COB lamp beads, color rendering index 80+, 90+ are optional, a variety of color temperature
options (3000K, 4000K, 5000K, 6500K).
Mounting plate: Patent structure.
Applications
Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
Parameter List
Watt: 8W/lamp or 10W/lamp
Voltage: AC 120V/230V/277V/120V-277V
Frequency: 50/60 Hz
PF: >0.9
Dimming: Non-Dimming/TRIAC Dimming
CRI: 80+/90+
CCT: 3000/4000/5000/6000K
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
Packing
Inner Box: 250*130*115 mm 1 PC/Box
Carton: 51.5*40.5*25.5 cm 12 boxes/Carton
