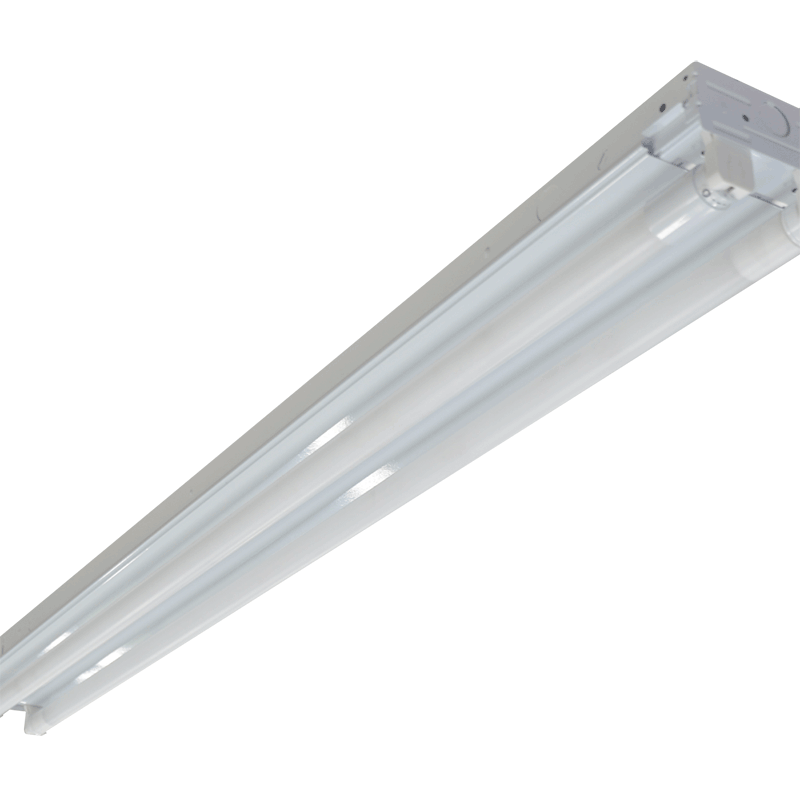

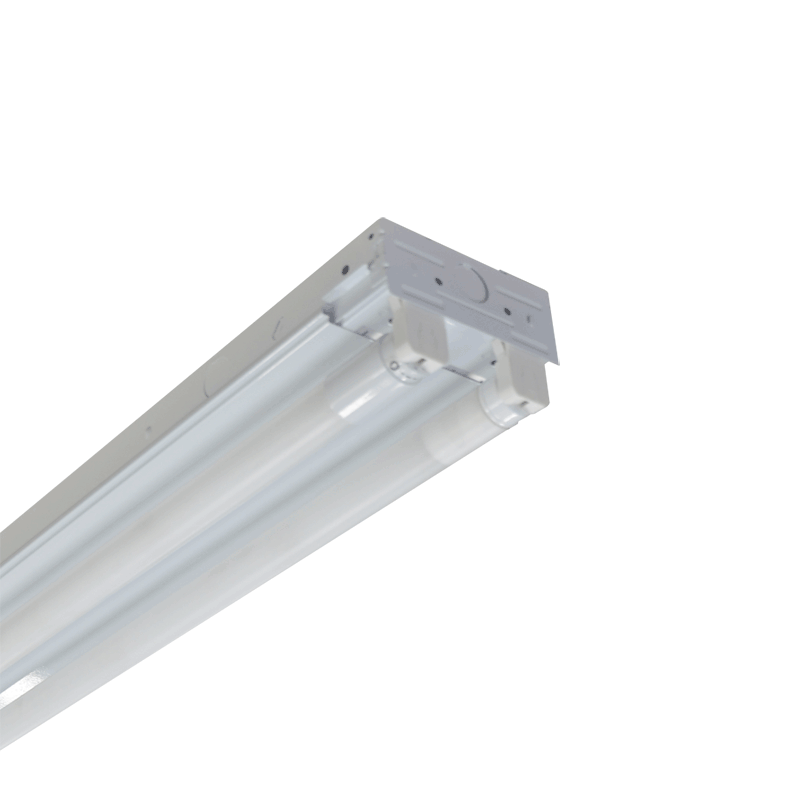

Suspended/Surface Mounted 8ft Ready Strip Light for T8 Tube Surpermaket Lighting
ITEM No.:DGL-8WT82/DGL-8WT84
Power : 18W*2 Tubes/ 18W*4 Tubes
Voltage : 120V/277V AC
Length : 8 Foot
Dimmable : NONE/0-10V Dimming
Certification : ETL listed
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Features
The product is a single tube or double tube T8 LED tube, providing high lumen, thin, elegant in appearance,
safe and reliable, easy to install and maintenance linear Light.
This series product is an industrial grade luminaries which is ideal for retail, commercial and industrial applications.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Single socket or double socket for options
Available in 1×4 and 1×8 models
IP Grade: IP44
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.
End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.
Mounting
Luminaires can be surface mounted or suspended, individually or in continuous row.
Fixtures easily snap together for long continuous rows.
Application
Suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Specification
Power | 18W/Tube |
Voltage | 120V/277V AC |
Length | 8 Foot |
Lumens | 2000 Lumens/Tube |
Beam Angle | 120° |
CRI | 80+/90+ |
Dimmable | NONE/0-10V Dimming |
CCT | 2700-6500K |
Certification | ETL listed |
Light Source is not included
Packing
4 Foot Outer box: 13.3*10*124CM 2PCS/CTN
8 Foot Outer box: 13.3*5.3*246CM 1PCS/CTN
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | Led Ready strip Light | liteharbor | 54 KB | 230 |
2 | DGL-4WT81 | liteharbor | 39 KB | 233 |
3 | Led Ready strip Light | liteharbor | 65 KB | 240 |
4 | Led Ready strip Light | liteharbor | 43 KB | 242 |
5 | DGL-4WT81 DGL-4WT82 DGL-8WT82 DGL-8WT84 | liteharbor | 273 KB | 287 |
