Surface Mounted 40W/60W 4FT Low Profile LED Linear Strip Light Parking Lighting
ITEM No.: DGL-ST-4
Power : 40W
Voltage : 120V ~ 277V AC
CRI : 80+/90+
Dimmable : Non-dimming/0~10V
Certification : ETL listed
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)

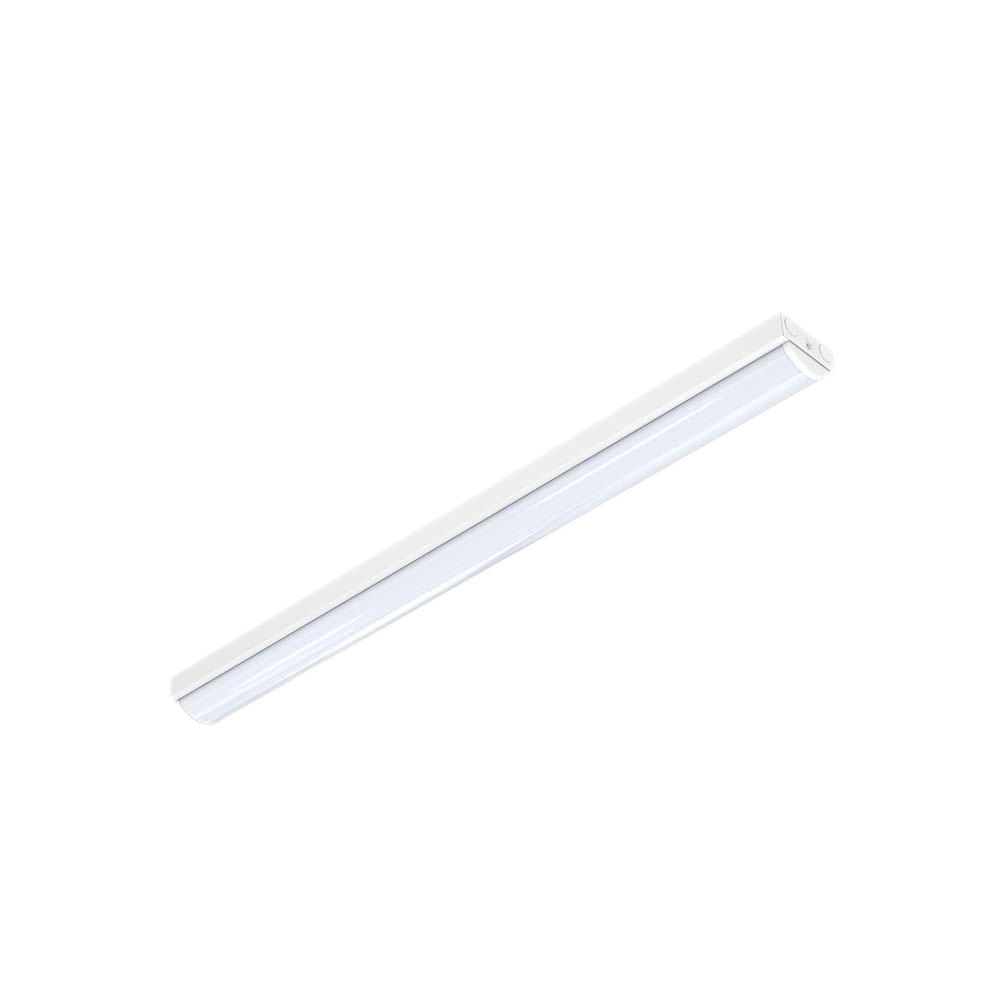

DGL ST-4 is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance linear light, is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
Using imported high transmittance pc cover, retain color for long time.
Beam Angle:120°
Emergency system/ Microwave Sensor is available.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Standard dimming control: 0 ~ 10 v dimming.
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Application: suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Warranty: 5-year limited warranty on LED and Driver.
Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.
Light Source
Using the energy-saving highlighting 2835 SMD LED light source.
Distributed LED array in a variety of lumen output packages.
LED color is available in 2700-6500K. Module is replaceable.
Mounting
Luminaires can be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.
Driver
Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.
Specification
Power | 40W/60W |
Voltage | 120V ~ 277V AC |
Frequency | 50/60Hz |
CRI | 80+/90+ |
Dimmable | NONE/0-10V |
Power Factor | >0.98 |
CCT | 2700-6500K |
Certification | ETL listed |
Lifespan | 50000 H |
Packing
Inner box: 140*80*1225mm 1 pcs/Box Outer box: 124*29.5*18.5CM 4PCS/CTN
