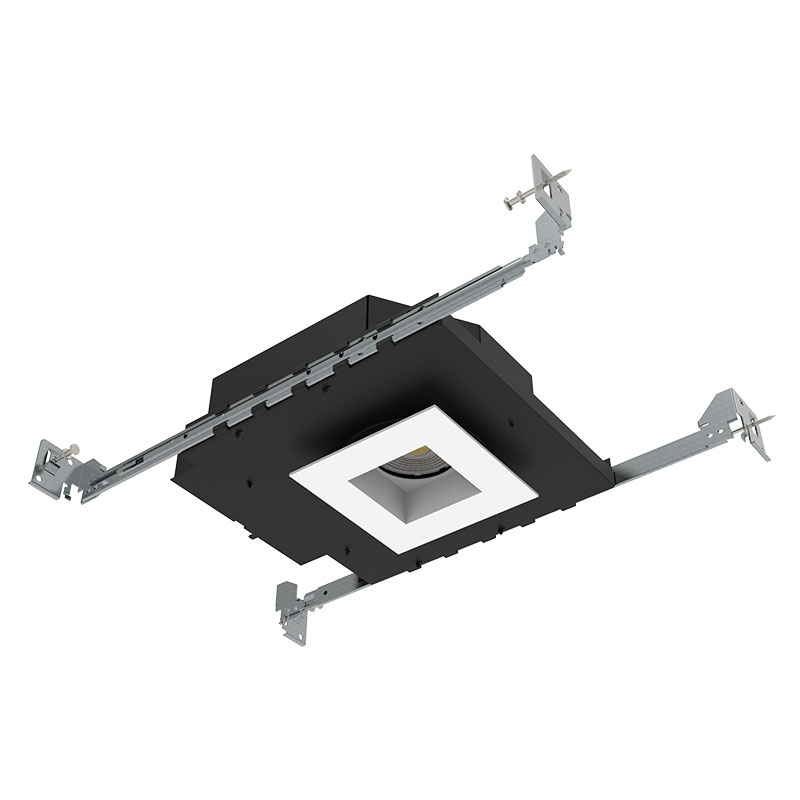

Lighting Project 3” Shallow New Construction commercial led downlights
ITEM No.： A3-M-S-2
Downlight Name : COB LED Recessed Downlight
Downlight Size : 3 inch
Downlight Wattage : 12 / 15 / 20 W
Downlight Lumens : 1000 1300 1600 Lumens
Downlight Beam Angle : 12 / 24 / 36 Degree
Housing Type : NON-IC / IC Rated
Description
Small aperture LED downlight with architectural appearance housed in an ultra-shallow 3″ above the ceiling housing. LED shallow downlight, with an extreme-low profile that is designed to fit in tight plenum spaces without comprimising lumen output or glare control. Choose from round or square, trim or trimless, and an array of fnishes. With features such as vertical and horizontal adjustment. Aether is suitable for a wide range of applications including residential, commercial, hospitality and architectura.
Features
– LED Downlights with shallow housings for recessed LED lighting.
– The finished ceiling is 2 or 3″ high and can help you easily combine quality lighting with piping, building infrastructure and
electrical equipment in any ventilated space anywhere.
– Meet the new thinnest LED housing in the world, measuring less than 3″ tall from top to bottom
– 850 to 1150 delivered lumens, 5 classic white color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
– Isolated constant current drive power supply, safe and stable guarantee without strobe, standard dimming control, matching
most dimmers.
– Beam angle: 12/24/36°
– Available in trimmed or trimless.
Ceiling Thickness
– Accommodates ceiling thickness 3″
– Delivered lumens are maintained through entire range
Listing / Warranty
– ETL listed to US and Canadian standards for damp location W/Feed through.
– 5 Year Limited Warranty.
Applications
– Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
Parameter
| Input Voltage | AC 120V/277V | ||||||||
| Power | 12W | 15W | 20W | ||||||
| Dimming | Non-dimming/TRIAC/0~10V Dimming | ||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||||
| CRI | 80/90CRI | ||||||||
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
A3-M-S-2, A3-M-S-2-TL
|
liteharbor | 632 KB | 411 |
