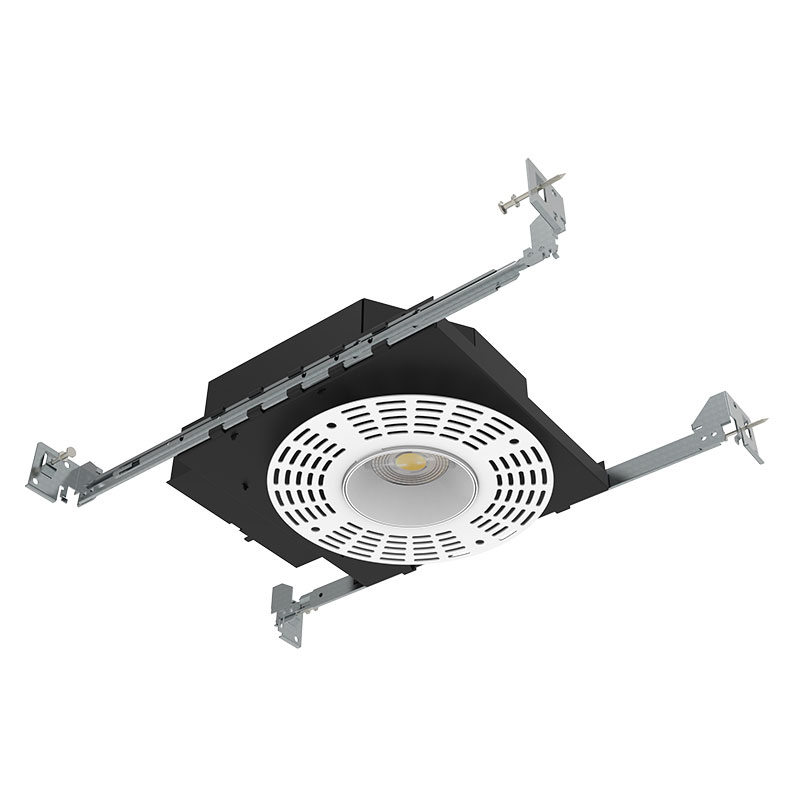

Light Project 3” Shallow New Construction commercial downlights
ITEM No.： A3-M-2-TL
Downlight Name : COB LED Recessed Downlight
Downlight Size : 3 inch
Downlight Wattage : 12 / 15 / 20 W
Downlight Lumens : 1000 1300 1600 Lumens
Downlight Beam Angle : 12 / 24 / 36 Degree
Housing Type : NON-IC / IC Rated
Description
Small aperture LED downlight with architectural appearance housed in an ultra-shallow 3″ above the ceiling housing. Ideal for accent, task and general area lighting, the 3″ LED downlight features field interchangeable optics that provide various distribution patterns for specific application needs.
Features
– LED Downlights with shallow housings for recessed LED lighting.
– The finished ceiling is 2 or 3″ high and can help you easily combine quality lighting with piping, building infrastructure and
electrical equipment in any ventilated space anywhere.
– Meet the new thinnest LED housing in the world, measuring less than 3″ tall from top to bottom
– 850 to 1150 delivered lumens, 5 classic white color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
– Isolated constant current drive power supply, safe and stable guarantee without strobe, standard dimming control, matching
most dimmers.
– Beam angle: 12/24/36°
– Available in trimmed or trimless.

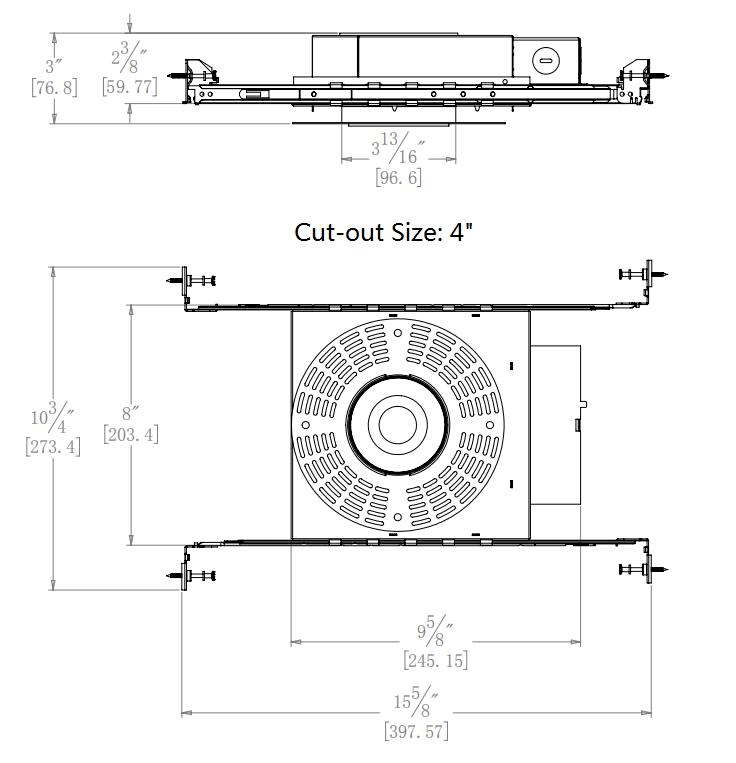

Ceiling Thickness
– Accommodates ceiling thickness 3″
– Delivered lumens are maintained through entire range
Listing / Warranty
– ETL listed to US and Canadian standards for damp location W/Feed through.
– 5 Year Limited Warranty.
Applications
– Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
Parameter
| Input Voltage | AC 120V/277V | ||||||||
| Power | 12W | 15W | 20W | ||||||
| Dimming | Non-dimming/TRIAC/0~10V Dimming | ||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||||
| CRI | 80/90CRI | ||||||||
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
A3-M-2, A3-M-2-TL
|
liteharbor | 613 KB | 328 |
