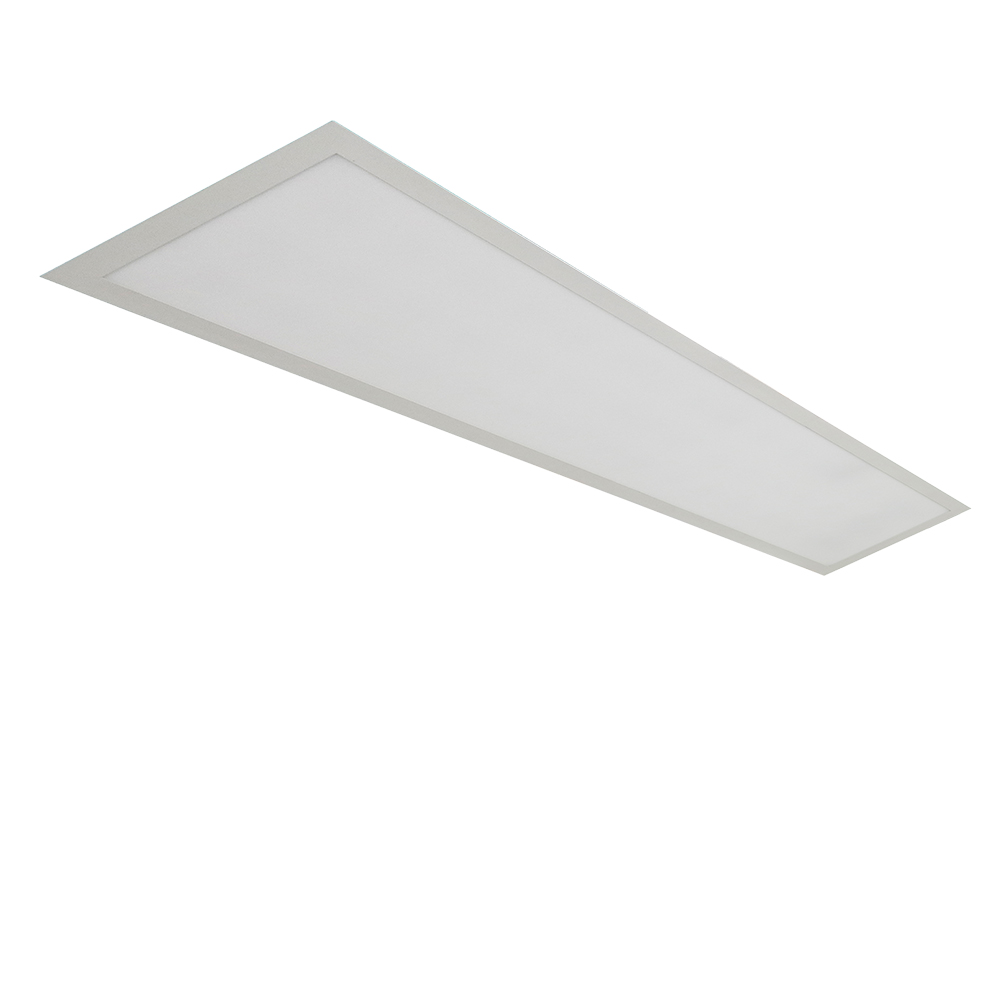

POE Solution 300 * 1200 Edgelit LED Panel Light With Power/ CCT Tunable For Lighting Project
/
/
/
/
POE Solution 300 * 1200 Edgelit LED Panel Light With Power/ CCT Tunable For Lighting Project

Overview

LED Edge-Lit Flat Panel with is the perfect replacement for fluorescent troffers used in drop ceilings. Thoughtfully designed for superior illumination, ultimate efficiency and easy installation. Designed to fit in a conventional suspended grid ceiling for new construction or retrofit projects, LED flat panels will save you time and money. Perfect for areas where you need bright, even light such as schools, universities, offices, churches, game rooms and restaurants.



Features

  • Power over Ethernet(POE) Lighitng Solution option
  • 2.4G Wireless CCTTunable.
  • Power & CCTTunable.
  • Without LGP, never turn yellow.
  • Isolated driver, PF>0.9, THD≤15 %
  • Super bright SMD2835 LEDs, LM80 rated Ra>80.
  • Lumen output: 130LM/W
  • AC120-277V or AC120-347V, 0-10V dimmable.
  • Non-flicker, no dark spot, protect your eyes.
  • Ideal replacement for traditional troffer with over 80% energy saving.
  • Back-lit technology diffuse reflection, uniform and soft light, no glare, no humming, no flare, no direct attention, effectively alleviate eye fatigue, more healthy use.
  • Newest LGP technology, higher luminous efficiency.
  • Leading LED driver design, overlong lifespan.
  • Delicate structure design, ultra thin and ultra light.
  • Simple, fashionable and elegant appearance.
  • Easy installation,can replace the same size of ceiling lights or grille lights.
  • No lead, no mercury, energy saving and environment friendly.
  • IP Rating: IP40.
  • Operating temperature: -20°C to 50°C.

POE SOLUTION

Liteharbor’s DGL-P series with single/double ethernet interface“One in” or “One in One out”design. It’s provides Cat 6/Cat 7/Cat 8 Ethernet Cable with UL Listed.PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.

Attribute Cat 6 Cat 7 Cat 8
Frequency 250 MHz 600MHz 2000MHz
Transmission speed 1Gbps/10 Gbps 10 Gbps 25 Gbps/40 Gbps
Distance 100m 100m 30m
Number of Connectors in Channel 4 4 2
Cable Construction UTP or Shielded Shielded Shielded
Connector Type RJ45 RJ45 RJ45
AWG 24 AWG 30 AWG 26AWG

Application

LED panel light is widely used in commercial lighting, residential lighting and communal facilities lighting such as meeting room, office, office building and so on.
Factory, hotel, restaurant, KTV, supermarket, market, subway station, the station’s waiting room, school, hospital, and all other places need energy saving and high CRI.



Details

Description DGL-P6628-E DGL-P12328-E DGL-P12628-E
Size 24”*24” 12”*48” 24”*48”
Edgelit Regular Series Wattage 36W/40W/45W 40W/45W 50W/60W/72W
Edgelit Premium Series Wattage 25W/35W/40W 25W/40W 32W/40W/50W/60W
Edgelit 2.4G Wireless Wattage 40W 40W 50W/60W
Edgelit Power & CCT Tunable SeriesWattage 20W-25W-30W-35W
30W-35W-40W-45W
20W-25W-30W-35W
30W-35W-40W-45W
35W-40W-45W-50W
35W-40W-45W-50W
55W-60W-65W-72W
Input: AC100-277V, 50/60Hz
Luminous Flux 3900lm/4400lm/4900lm 3900lm/4400lm/4900lm 5500lm/6600lm/7900lm
Lumens / Watt 110LM/W
Dimming 0-10V Dimminhg/ 2.4G Wireless
Dimming / CCT
Tunable
Color temperatures 3000K,3500k,4000k,5000k
Function ●Wireless dimm ing                                      ●Dimming
●Wireless dimming + Sensing                        ●Dimming + Sensing
●Wireless dimming + Emergency                  ●Dimming + Emergency
●Wireless dimming + Sensing + Emergency   ●Dimming + Sensing + Emergency
●CCT & Watt Tunable                                 ●CCT & Watt Tunable + Sensing
●CCT & Watt Tunable + Emergency            ●CCT & Watt Tunable + Sensing + Emergency
PF: 0.98
Working Temperature: -20℃ – 50℃
IP Grade: IP44
Anti-power level: Class II
LED Chips: SMD2835/SMD4014
Emitting Color: Warm white/Pure white/Cool white
Certifications: UL DLC CE RoHS FCC
Lifetime 50000 Hours
Warranty 5-Year Limited



Quality

Certifications: UL DLC CE RoHS FCC
50000 Hours Lifetime.
5-Year Limited Warranty.

Product File Download

# File Added by File size Downloads
1 pdf DGL-P6628 Edgelit liteharbor 2 MB 136
2 pdf DGL-P12328 Edgelit liteharbor 2 MB 132
3 pdf DGL-P12628 Edgelit liteharbor 2 MB 136

Liteharbor Lighting is a manufacturer with 16-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.

Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.

Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.
