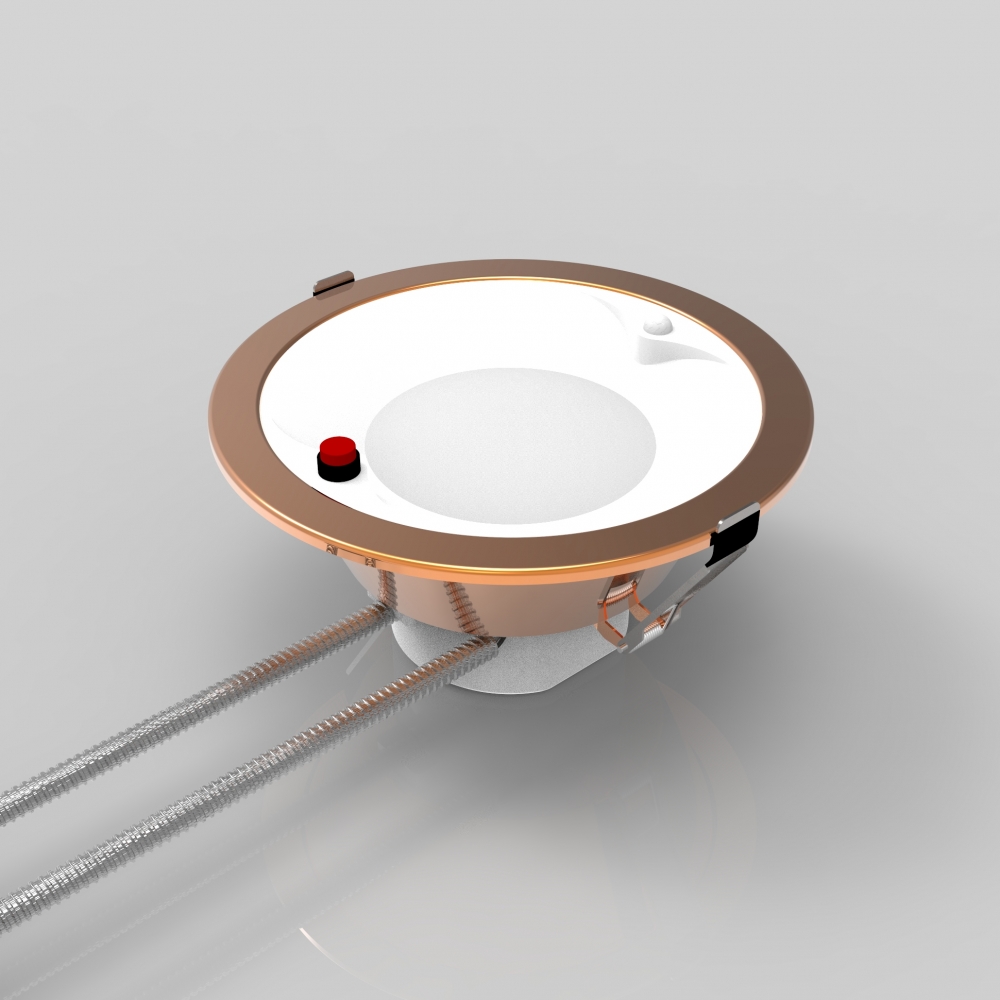

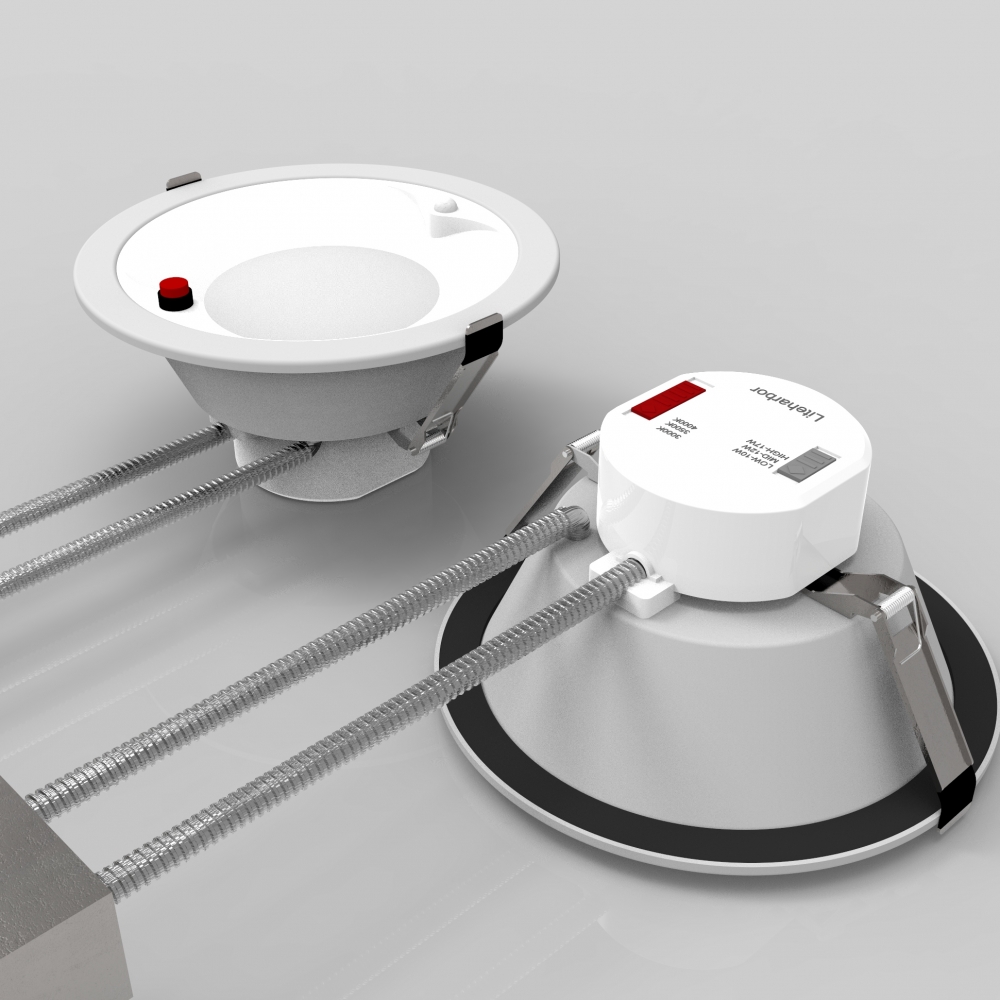

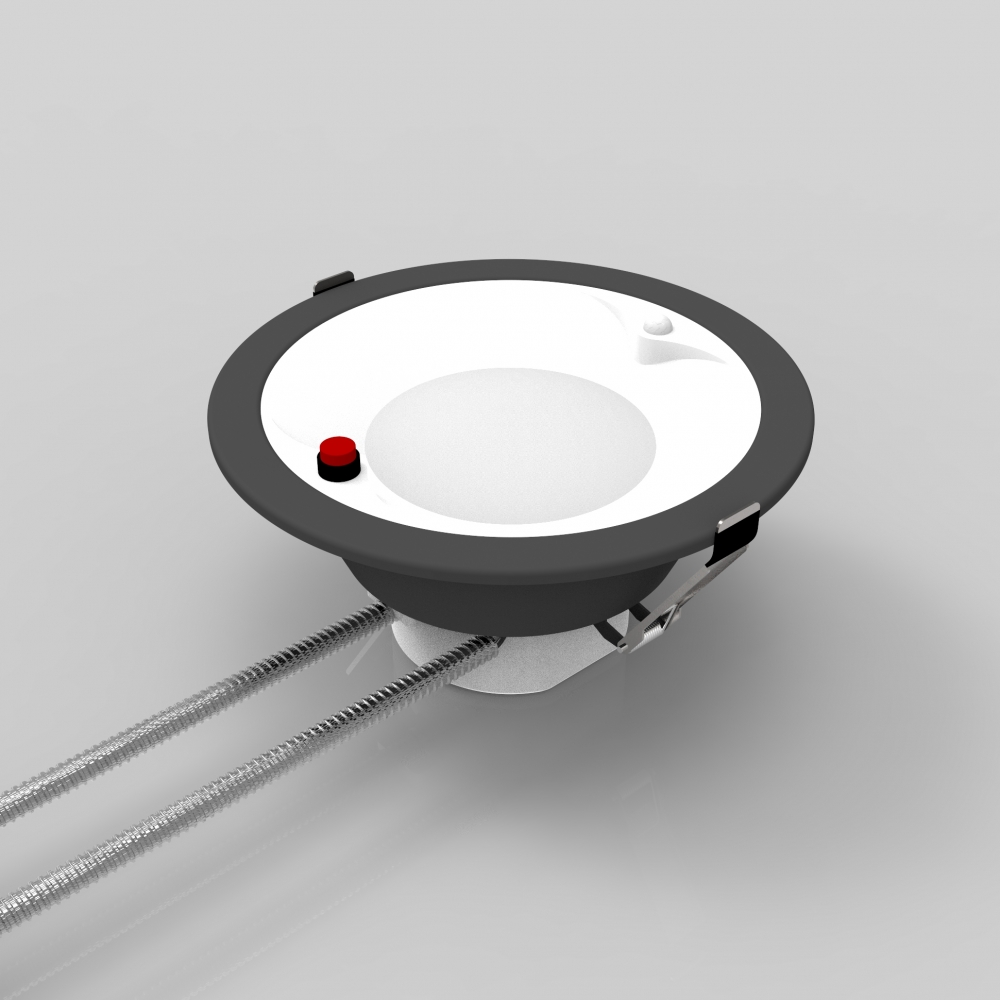

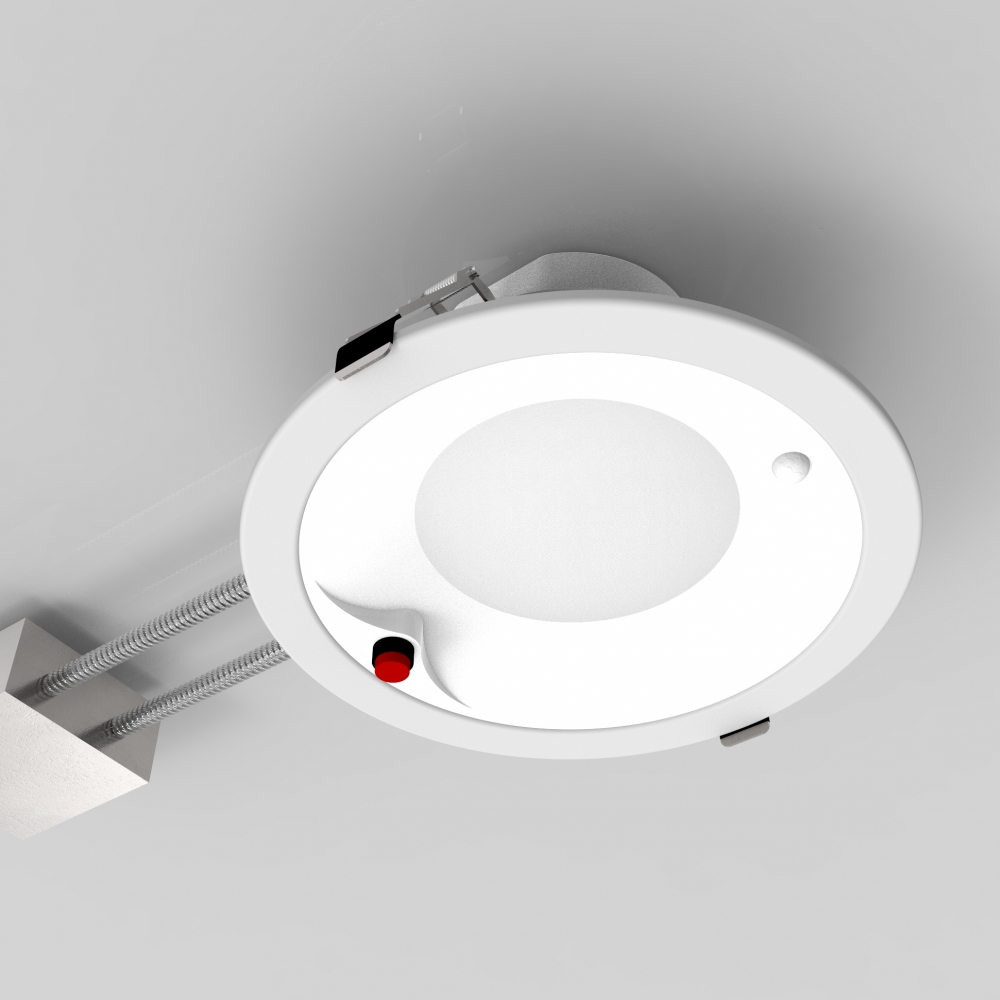

POE Lighting 6″ Recessed Emergency Downlights With Power and CCT Tunable
ITEM No.：BL68-EM001
Shape : Round
Input Voltage : 120-277V AC/24V(PoE Scheme)
Lumen : 1250lm
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K/3CCT
Lifespan : 100000 Hours
DESCRIPTION
6″ Recessed Emergency Downlight for low to medium height ceilings in commercial and architectural applications. Emergency LED Battery Back-Up integrally mounted inside the fixture for unobtrusive design, illuminates during normal power to blend in with other AC Only Architectural Luminaires.Save money with 80% energy savings compared to incandescent and halogen bulbs.
FEATURES
- PoE scheme or LED quick connector provided.
- Complete, pre-wired emergency downlight solution—including test button —removes all typical guesswork, uncertainty, and complex installation issues from battery backup downlight applications.
- Robust, durable and lightweight.
- Power & CCTTunable, convenient inventory and cost savings.
- No Flickering, noise or RF interference
- Easy to install to suspended ceiling grids.
- Retrofit or New Construction.
- Illuminated Self-Diagnostic LED test switch.
- Motion Sensor Auto Mode Auto on for pre-determined time(1/5/10MIN) when people or other living objects aredetected within the sensing area, and Auto OFF after no further motion is detected.
- Built-in 5W LED emergency driver，400lm delivered during emergency operation.
LED LIGHT ENGINE
● Optional branded LED chips.
● Input AC 120V/277V at 50/60Hz.
●3CCT/5CCT Tunable.
●2700K, 3000K, 4000K, and 5000K , 80/90CRI option.
●Typle A – 3CCT, provides 3000K-4000K-5000K option.
●Typle B – 3CCT, provides 2700K-3000K-3500K option.
● Rated life of 50,000 hours.
IVEDRR
●20W, 120V/277V AC 50/60Hz Electronic Direct Current Class 2
driver integrally mounted on large access Junction Box.
●TRIAC/ELV or 0–10V dimming LED driver.
● Suitable for use in dry and damp locations.
● Power Factor: >0.90
SPECIFICATION
| DESCRIPTION | BL6-EM001 | BL8-EM001 | ||||||||||||||||||||||||
| Wattage | 10W-12W-17W | 14W-17W-20W | ||||||||||||||||||||||||
| Luminosity | 1250lm | 1900lm | ||||||||||||||||||||||||
| Lumens / Watt | 78lm/w | 78lm/w | ||||||||||||||||||||||||
| CRI | 90+ | 90+ | ||||||||||||||||||||||||
| Colour Temperature | 3000K, 4000K, 5000K/3CCT(3000K-4000K-5000K) | 3000K, 4000K, 5000K/3CCT(3000K-4000K-5000K) | ||||||||||||||||||||||||
| Driver Input | 24V | 120V AC or 120V-277V AC 50/60 Hz | 24V | 120V AC or 120V-277V AC 50/60 Hz | ||||||||||||||||||||||
| Power Factor | 0.9 | 0.9 | ||||||||||||||||||||||||
| Dimming | TRIAC Dimmers /0-10V Dimmers | TRIAC Dimmers /0-10V Dimmers | ||||||||||||||||||||||||
| Location | Dry / Damp Locations | Dry / Damp Locations | ||||||||||||||||||||||||
| Finish | White,Black,Satin Nickel | White,Black,Satin Nickel | ||||||||||||||||||||||||
| Ceiling Cut out Size | ∅ 6” to ∅ 7” | ∅ 8” to ∅ 9” | ||||||||||||||||||||||||
| Wire | Cat5/Cat6 | FT4/FT6 | Cat5/Cat6 | FT4/FT6 | ||||||||||||||||||||||
| IP Rating | 20 | 20 | ||||||||||||||||||||||||
| Power Efficiency | >90% | >90% | ||||||||||||||||||||||||
| UGR | <18 | <18 | ||||||||||||||||||||||||
| Beam Angle | 120° | 120° | ||||||||||||||||||||||||
| THD | <20% | <20% | ||||||||||||||||||||||||
| Installation | Recessed Ceiling Mount | Recessed Ceiling Mount | ||||||||||||||||||||||||
| Lifespan | 50,000 Hours | 50,000 Hours | ||||||||||||||||||||||||
| Executive Standard | ETL | ETL | ||||||||||||||||||||||||
| Warranty | 5 Year Limited for Fixture & Driver | 5 Year Limited for Fixture & Driver | ||||||||||||||||||||||||
POE SOLUTION
Liteharbor PoE solution with single/double ethernet interface“One in” or “One in One out”design. It’s provides RJ45 wiring system suitable for CAT5, CAT6, CAT7, CAT8 Ethernet Cable with UL listed . PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.
PoE technology can be integrated into many of Liteharbor’s lighting solutions and product families including architectural recessed lighting, architectural linear lighting, architectural downlights, residential downlights and pendants light. More POE Lighting please follow up www.recesseddownlight.com
EMERGENCY MODE
- LED Downlights combine powerful LEDs with pre-integrated battery backup power to deliver 90 minutes of uninterrupted lighting whenever the power goes out. Built-in battery backup means no aftermarket install and integrated test button makes routine checks simple.
- When AC power is restored, the emergency pack switches back to normal mode and starts re-charging.
- If emergency driver detects battery failure due to problems such as bad contact or charging issues, the test button will not be lit.
APPLICATIONS
- Hospitality
- Retail
- Kitchens
- shopping mall stores
- Museum
- Commercial
- indoor residential
- hotels
- offices
LISTING/WARRANTY
●ETL to US and Canadian standards for damp location W/Feed through.
● 5 Year Limited Warranty.
