PoE Lighting 1 Inch Super Thin 20W LED Mini Recessed Downlight
ITEM No.： X-Light-E-S
Shape : Round/Square
Input Voltage : 120-277V AC/24V(PoE Scheme)
Lumen : 85 lm/lamp
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K/
Beam Angle : 24/36/48 Degree
Lifespan : 100000 HoursLED Mini Spotlight
Description
X-Light Ⅱ series, it provides a quick and convenient installation method, provides the solution of the edge of architecture lighting, and makes a big breakthrough in the use and design. 1 inch (∅25mm) of the light-emitting surface the size to achieve the ultimate.
Features
• X-light-E with square and circular light emission effect.
• Use big brand COB light source with high luminous efficiency (140lm/w) and long service life (80000 hours).
• Professional light distribution devices, no glare, perfect control light, spot even transition.

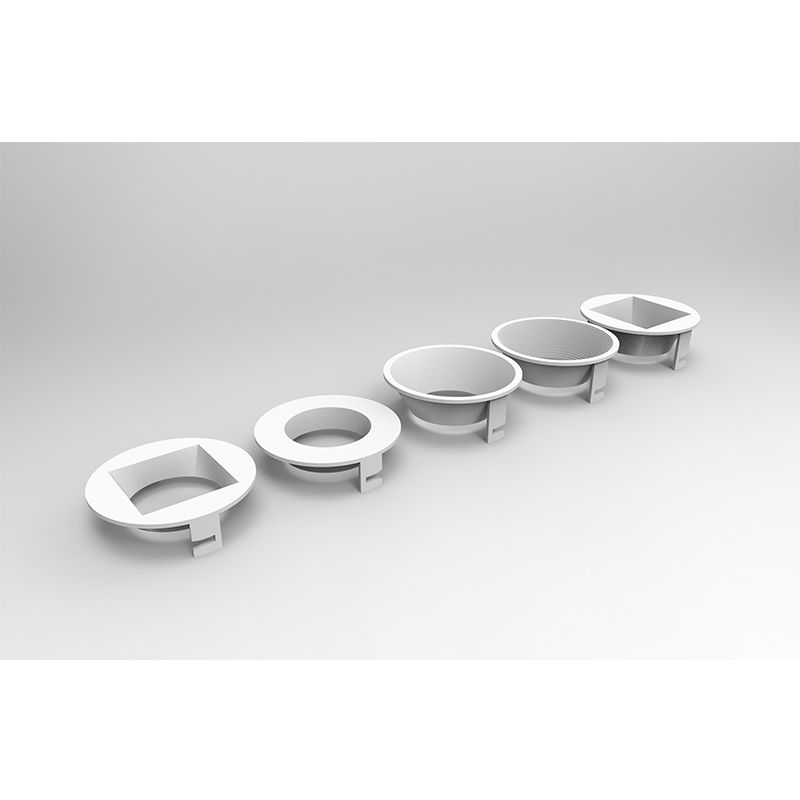

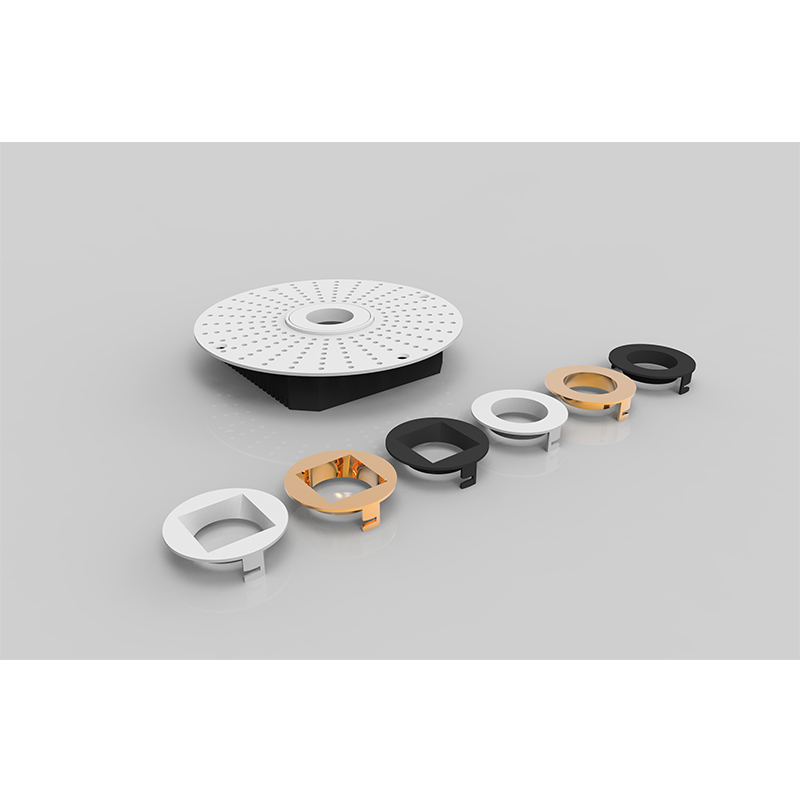

• Easy to change light sources,and multiple trim can share one housing.

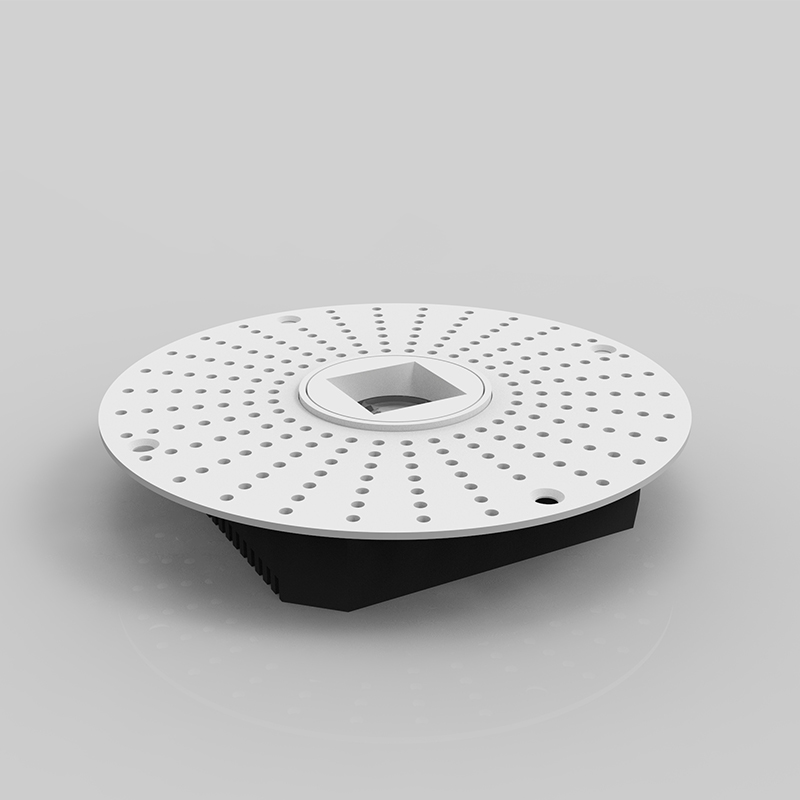

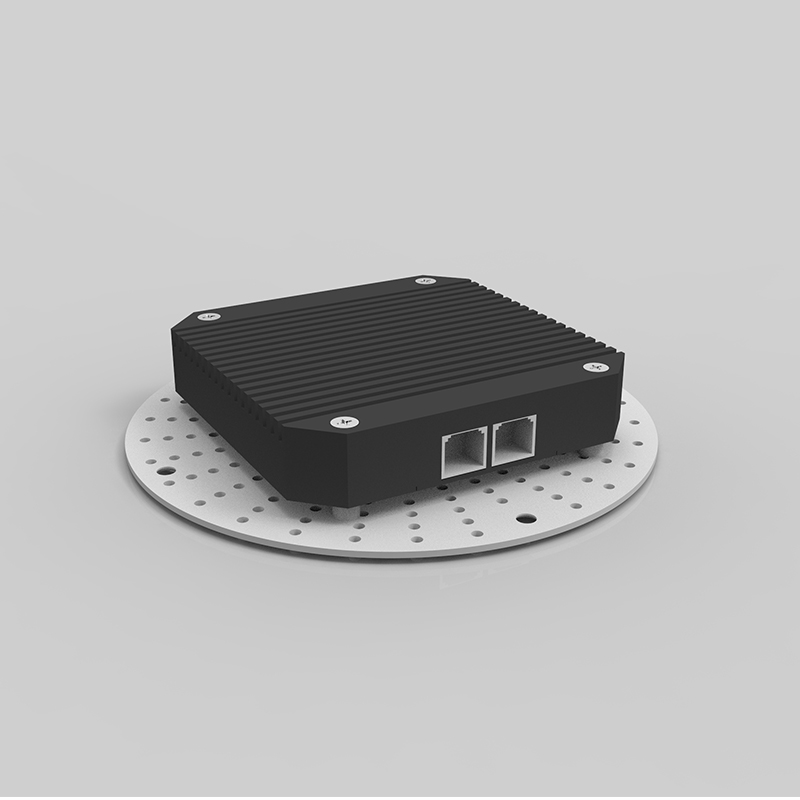

Lamp Body
• Ultra thin, the height of the whole lamp is only 23mm .
• Ultra small light emitting surface, only 1 inch (∅25mm).
• All-in-one die casting lamp body with unique appearance.
• Double-sided heat dissipation, can be made into IC type directly.
• The anti-pull device is hidden inside the lamp body.
Advantages of PoE Solution
Liteharbor’s X-Light-E adopt Cat 6/Cat 7/Cat 8 Ethernet Cable with UL Listed.PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.. PoE lighting uses Power over Ethernet technology to connect, monitor, and control LED light fixtures used in smart building solutions. Smart PoE lighting reduces installation and operating costs by more than half and helps building owners meet wellness and sustainability goals.
Lamp
| Wattage | 20W Max./lamp | |||||||||||
| Input Voltage | 120-277V/24V（PoE Scheme） | |||||||||||
| CCT | 3000K/4000K/5000K/6500K | |||||||||||
| CRI | 90+/95+/97+ | |||||||||||
| Luminous Flux | 85lm/lamp | |||||||||||
| Beam Angle | 24°/36°/48° | |||||||||||
| Light source | COB | |||||||||||
| Life span | 5-Year | |||||||||||
Power Supply
| Wattage | 120W Max . | |||||||||||
| Input Voltage | 120-277V AC | |||||||||||
| Frequency | 50/60 Hz | |||||||||||
| Output Voltage | 24V | |||||||||||
| Electric current | 3.4A Max . | |||||||||||
| Power Factor | >0.9 | |||||||||||
| Dimming | 0-10V Dimming | |||||||||||
Listing / Warranty
• ETL listed to US and Canadian standards for damp location W/Feed through.
• 5 Year Limited Warranty.

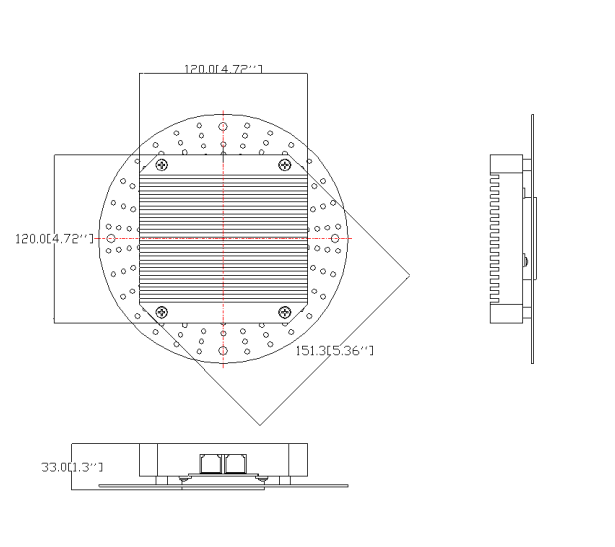

Dimensions
Ceiling cut out φ 5.36”
