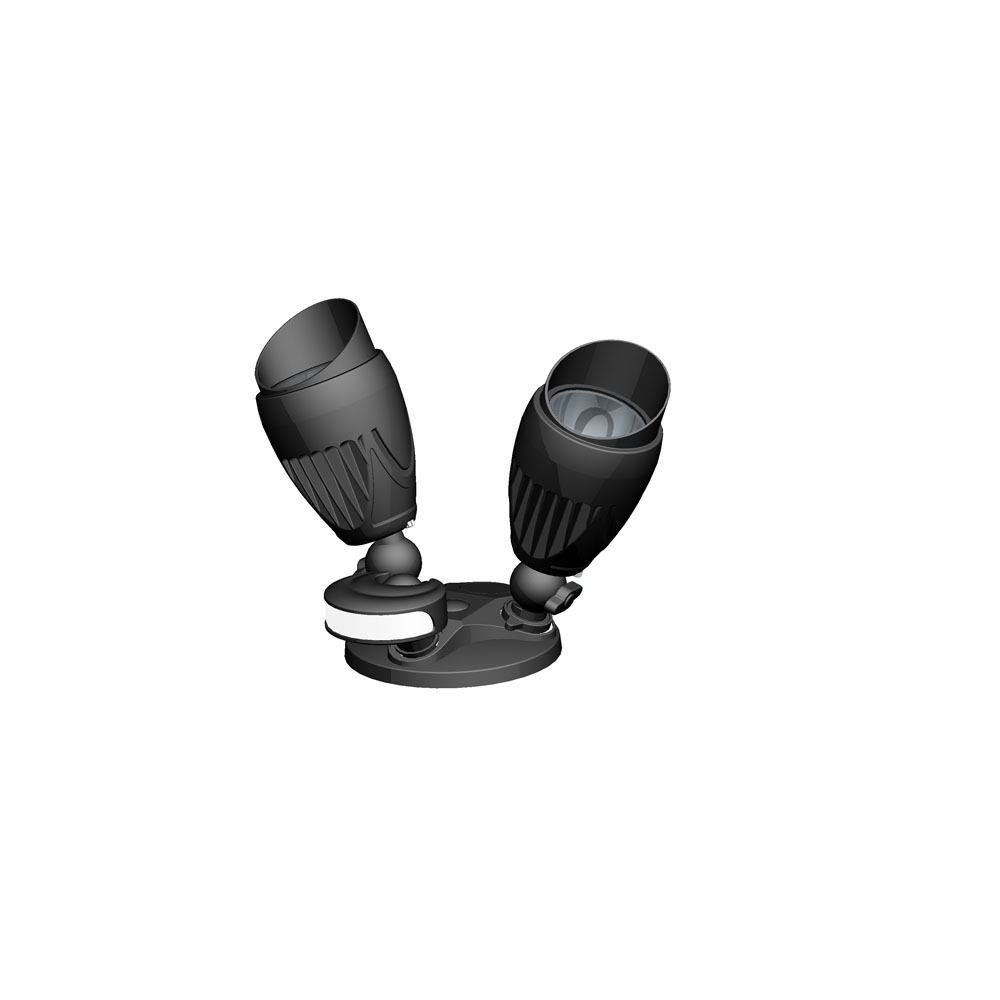

One Head/Two Head/Three Head Indoor and Outdoor LED Security Light
ITEM No.： DG5705
product series : LED Security Light
Voltage : AC100-277V
System Power : 10W
CCT : 3000K-6000K
Features
– Smooth linear and LED structure features organically combined, the appearance is simple.
– P.I.R motion detectors functions, which realized the intellectualized design of product.
– The lamp adopts the 180 degree rotary structure, which can meet the needs of difference applications.
– Light source and electrical separate design, easy for installation and maintenance.
– Power supply, light source and mounting cover, the three divided and separate structure can be applied freely in various power and sizes.
– Professional optical design with efficient optical distribution, high efficiency, proving with variety of light distribution options.
– The lamp uses manual adjustment of color temperature, and rotary adjustment knob can achieve different lighting effects.
– Reasonable heat dissipation design to ensure the service life of lamps.
– Lighting structure, electrical safety compliance with EN60598 GB7000 standard requirements.
– Anti-electric shock protection: Class III
– IP rating: IP65
Parameter
Without Sensor and 3CCT
| Item No. | PF | Light Source | Luminous Effiency | Operating Temperature | IP Rating | Lifespan |
| DG5705-1 | >0.95 | 10Wx1 | >80lm/W | -30-50℃ | IP65 | 50000hour (5 year limited warranty) |
| DG5705-2 | 10Wx2 | |||||
| DG5705-3 | 10Wx3 |
With 3CCT
| Item No. | PF | Light Source | Luminous Effiency | Operating Temperature | IP Rating | Lifespan |
| DG5705A-1 | >0.95 | 10Wx1 | >80lm/W | -30-50℃ | IP65 | 50000hour (5 year limited warranty) |
| DG5705A-2 | 10Wx2 | |||||
| DG5705A-3 | 10Wx3 |
With Motion Sensors (Round or Square for option, 150°/180° or 240°/270° for option)
| Item No. | PF | Light Source | Luminous Effiency | Operating Temperture | IP Rating | Lifespan |
| DG5705B-1 | >0.95 | 10Wx1 | >80lm/W | -30-50℃ | IP65 | 50000hour (5 year limited warranty) |
| DG5705B-2 | 10Wx2 | |||||
| DG5705B-3 | 10Wx2 |
With Photocell
| Item No. | PF | Light Source | Luminous Effiency | Operating Temperature | IP Rating | Lifespan |
| DG5705C-1 | >0.95 | 10Wx1 | >80lm/W | -30-50℃ | IP65 | 50000hour (5 year limited warranty) |
| DG5705C-2 | 10Wx2 | |||||
| DG5705C-3 | 10Wx3 |
With Time-controller
| Item No. | PF | Light Source | Luminous Effiency | Operating Temperature | IP Rating | Lifespan |
| DG5705D-1 | >0.95 | 10Wx1 | >80lm/W | -30-50℃ | IP65 | 50000hour (5 year limited warranty) |
| DG5705D-2 | 10Wx2 | |||||
| DG5705D-3 | 10Wx3 |
Applications
Suitable for lighting and decorative lighting of hospitals, schools, shopping malls and office buildings.
Listing/ Warranty
ETL Listed to US and Canadian standards for wet locations
5 Year LED Limited Warranty
