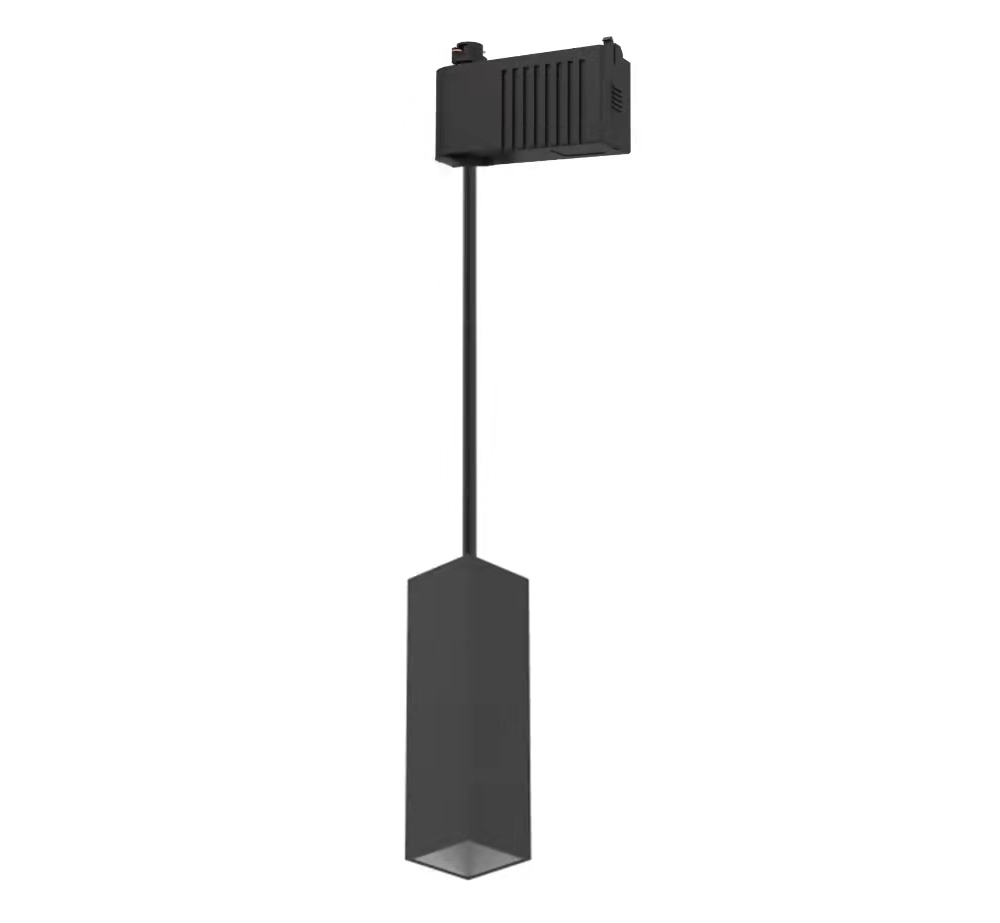

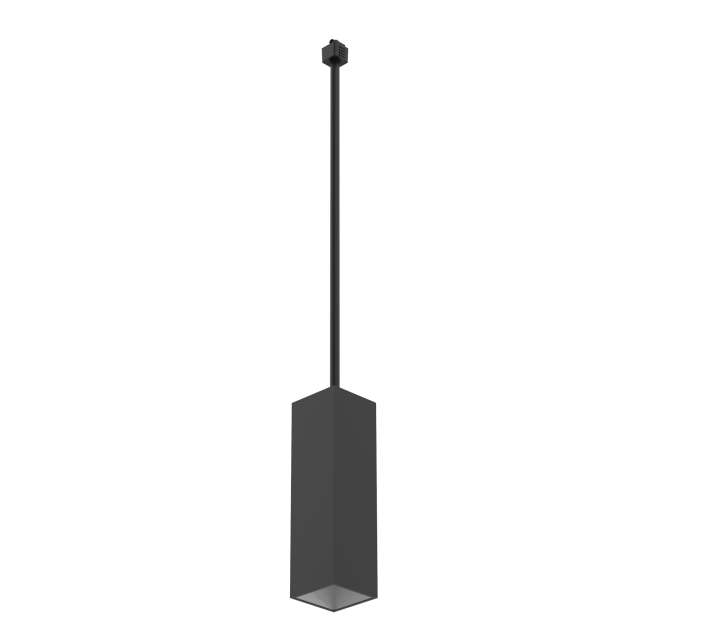

Low Volt J/H/L Track System Villa lighting 3CCT Square Shape Cylinders LED Track Pendants
ITEM No.: AL35-VA-SM1
Series : LED Pendant Downlight
Wattage : 10W/16W/20W
Light Source : LED
CCT : 2700-6000K
Shape : Cylinders
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
FEATURES
Centrally powered driver 120V input at the light source becomes the output 24V power.
lamp beads. Low-voltage centralized power supply improves safety and reduces single lamp spare parts.
Sleek, high performance pendant complements pendant downlighting family.
Unique flush, surface, cable, pendant mount design allows for precise alignment and adjustment.
All aluminum construction, powder coat painted in white, black or silver finish for harsh, weatherproof applications.
120V AC Direct technology in 10W, 16W or 20W dimmable modules with integrated circuit.
Easy installation and ultra energy efficient.
Dedicated 9° optic with field changeable 12°, 24°, 36° & 50° optics.
3 color temperature selectable, convenient inventory and cost savings.
SPECIFICATIONS
Radiator: Using cold forging radiator, fast heat dissipation, structure of the heat dissipation module, integrated balanced conduction convection,radiation heat, to ensure long product life.
Spraying: Environmental protection electrostatic powder coating surface treatment process, durable wear.
Material | Die cast aluminum |
Input Voltage | 24V |
Wattage | 10W/16W/20W |
CCT | 2700,3000K,3500K,4000K,5000K,6000K,3CCT |
PF | >0.98 |
CRI | 80+/90+ |
Mounting | Track Pendant Mount |
Mounting
Pendant mounted.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | AL35-VA-SFM | liteharbor | 177 KB | 251 |
Liteharbor Lighting is a manufacturer with 16-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.
Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.
Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.
Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.
