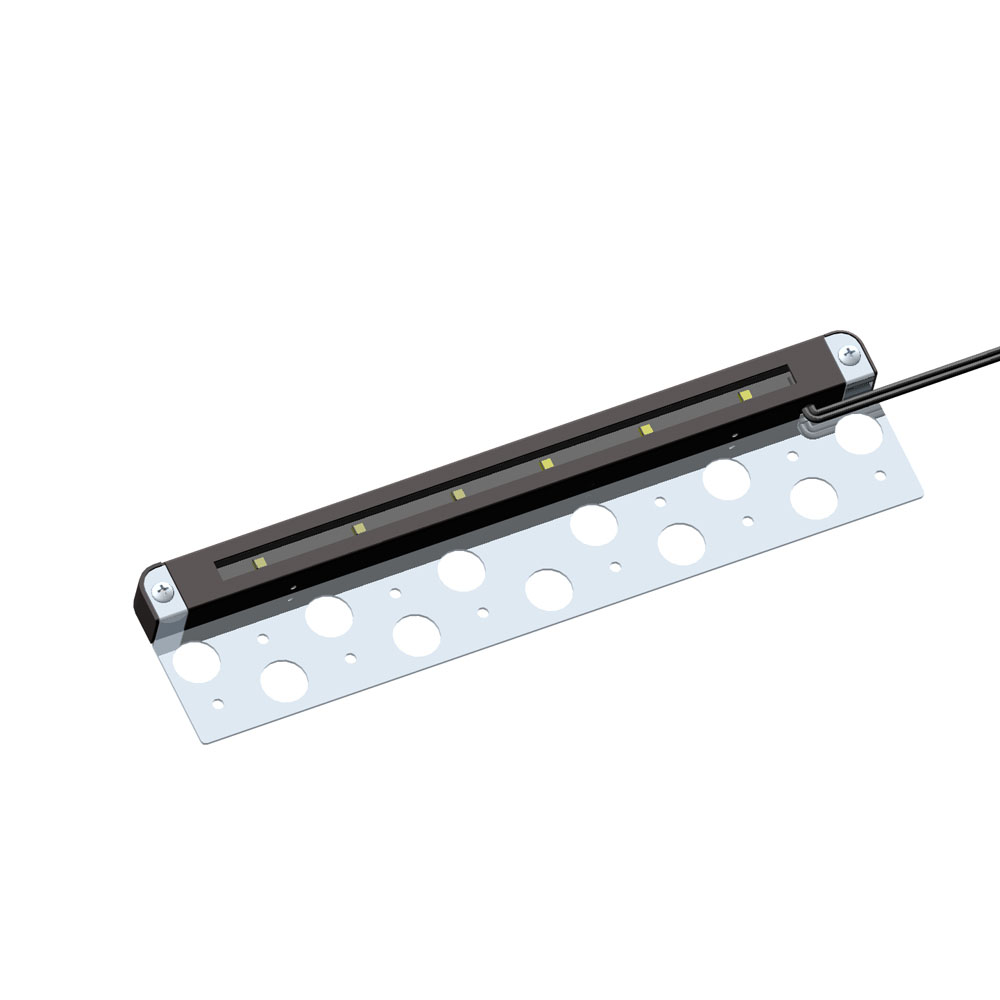

Liteharbor Outdoor Hardscape Light with 6 PCS LED Chips
ITEM No.: DG6205
Wattage : 1.5W
Input Voltage : AC/DC 12V
IP Rating : IP65
Beam Angle : 120 Degree
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Descriptions
Liteharbor Hardscape Lamp is the perfect solution for outdoor applications, this fixture is intended to be installed between
brick or masonry, fully encapsulated design ensures the fixture will stand the test of time with no callback or replacement.
Features
– Die-casting aluminum light bar, stainless steel mounting bracket and screws.
– Break off corners on mounting plate for easy install.
– Operates at 12V with no loss in output due to constant current technology.
– Removable light bar can suitable for different application.
– 120 degree beam angle with 6 pcs LED chips at a total of 1.5W.
– Using LED SMD 3535/5050 Chips, the quality is guaranteed.
Applications
Suitable for retaining wall, gardens, benches, gazebos, decks, patios, stairs and outdoor living spaces.
Product Details
Product Series | LED Hardscape Light |
Item No. | DG6205 |
Electronic Performance
Input Voltage | AC/DC 12V |
Frequency Range | 60Hz |
System Power | 1.5W |
PF | >0.9 |
Driver | Liteharbor |
Dimmable | Non-dimmable |
Optical Performance
Total Lumen | 100 lm |
LED Light Source | SMD3535/5050 |
LED Qty | 6 PCS |
CCT | 2700K-5000K |
CRI | 90+ |
IP Rating | IP66 |
Beam Angle | 120 Degree |
Mechanical Performance
Material | Stainless steel/Aluminium/Bronzed |
IP Rating | IP65 |
Finish | White/Black/Brown |
Dimensions | 327.5mm*76mm*18.5mm |
Warranty
5 Years Lmited Warranty.
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | DG6205 | liteharbor | 77 KB | 216 |
