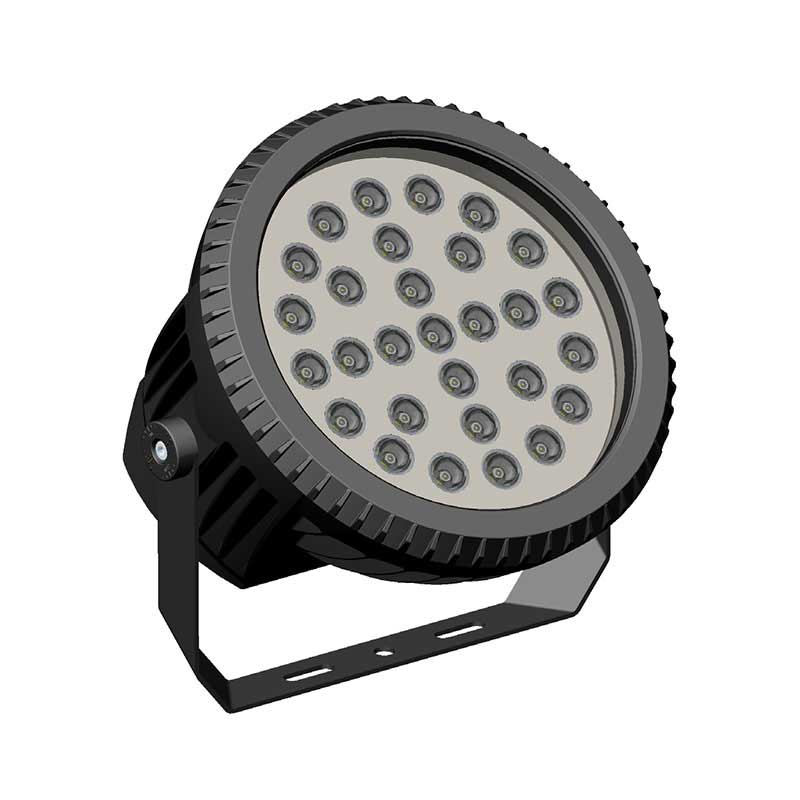

Liteharbor IP66 3CCT Circular LED Flood Light
ITEM No.： DG5216
Wattage : 60W
Input Voltage : AC 120V
IP Rating : IP66
Beam Angle : 120 Degree
Features
– The circular is used as the main design, and the lamps as a whole exhibit mechanical elements, so as to achieve a sleek, exquisite and flexible purpose.
– 4mm tempered clear glass, light transmittance up to 95%, reduce the light loss.
– The lamp is composed of a lamp body, a front end cover and a rear end cover, both of which are installed with a screw structure, and at the same time, the installation screws are hidden, and the appearance is beautiful.
– Reasonable heat dissipation design, high density precision die casting aluminum lamp body, ensure the life of lamp.
– Adopt brand LED light source.
– Outdoor professional static outdoor plastic powder sprayed on surface, anti-UV, anti-corrosion and weather resistance is strong.
– Unique manual switch dimming, color temperature control function: 3CCT (3000K/4500K/6000K).
– Intelligent light control induction function: through the light sensor intelligent switch lamp, no need manual switch.
– Lighting structure, electrical safety compliance with EN60598 GB7000 standard requirements.
– Electric shock protection: Class I
– IP rating: IP66
Applications
Suitable for factories, gymnasiums, wharfs, billboards, buildings, lawn, gardening design and other lighting and decorative lighting places.
Parameter
| Item No. | DG5216 | DG5216A |
| Input Voltage | AC100-240V | AC100-240V |
| Frequency Range | 50-60Hz | 50-60Hz |
| Light Source | 30 PCS | 30 PCS |
| Power Factor | >0.95 | >0.95 |
| Total Harmonic Distortion | <15% | <15% |
| System Power | 60W | 60W-RGB |
| Light Distribution Optional | 15/20/30/45/60/90/120 degree | 15/20/30/45/60/90/120 degree |
| Luminous Efficiency | >100lm/W | – |
| Luminous Flux | 6000lm | – |
| Applicable Ambient Temperature | – 30 — 45°C | |
| Working Temperature | RH10％-90％ | |
| CCT | Warm White 2700K Pure White 4500K Cool White 6000K |
|
| CRI | Ra>75-90 optional | |
| IP Rating | IP66 | |
| Life Span | ＞20000h/＞30000h/＞50000h are optional | |
| Electric-shock Safeguard | CIASS I | |
| Dimensions | ￠250*164.5 mm | |
Mounting
In-ground Mounted
Suspension Mounted
Tree Hanging Mounted
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
DG5216
|
liteharbor | 1 MB | 230 |
