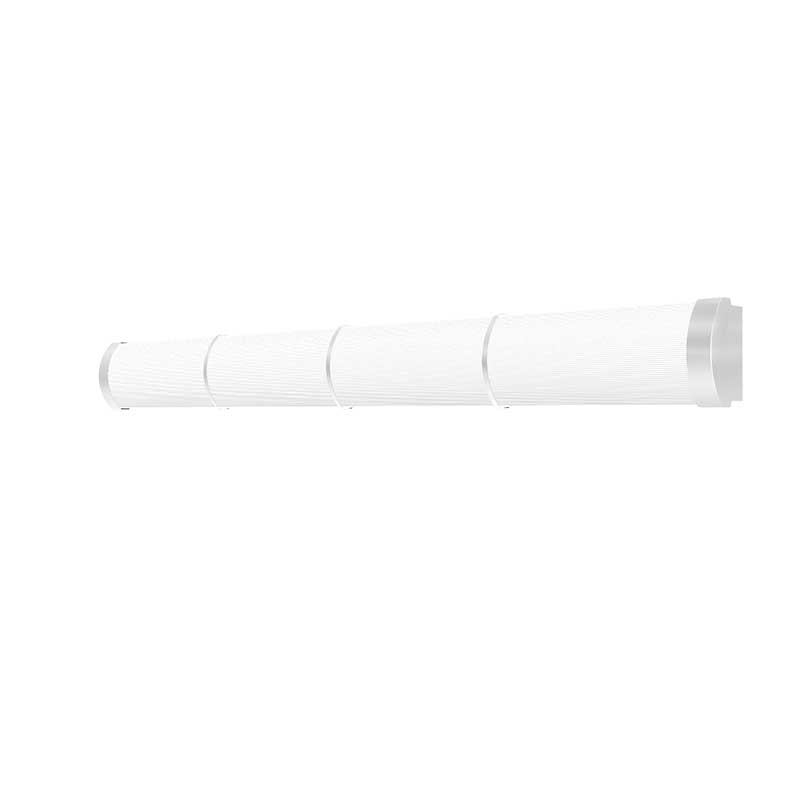

Liteharbor 4FT Elegant Designed SMD LED Vanity Light
ITEM No.： DGL-LV-B46
Input Power : 40W
Input Voltage : 120-277V
Frequency : 60Hz
Power Factor : PF>0.98
Dimming : NONE/0-10V
Description
This is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance led vanity light.
Customized residential and Commercial Lighting applications with this LED cylinder vanity light.
The contemporary cylinder is constructed of an acrylic diffuser with housing available in either a brushed nickel or chrome finish.
The included canopy/junction box cover is removable for a more low profile look (2′-4′ lengths only)
The white acrylic diffuser provides even illumination and softens the appearance of the LEDs for improved aesthetics.
Features
Using imported high transmittance PC cover, retain color for long time.
Available in 1×2, 1×3 and 1×4 models.
Beam Angle: 180 °.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Light Source
Using the energy-saving highlighting 2835 SMD LED light source.
Distributed LED array in a variety of lumen output packages.
LED color is available in 2700-6500K. Module is replaceable.
Standard dimming control: 0 ~ 10 v dimming.
Mounting
Wall mounted.
Driver
Using isolation constant-current driver power, is the guarantee of security, stability and no flicking.
Listing&Warranty
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, damp location.
Warranty: 5-year limited warranty on LED and Driver.
Specification
| Length | 2FT/3FT/4FT |
| Input Power | 20/30/40W |
| Input Voltage | 120~277V |
| Frequency | 60Hz |
| Power Factor | PF>0.98 |
| CRI | 80+/90+ |
| Dimmable | NONE/0-10V |
| CCT | 2700-6500K |
| Lifespan | 50000 H |
| Listing | ETL Listed |
Packaging
2ft: 610*123*93mm
Inner box: 615*130*100mm 1 pcs/Box Outer box: 63*42*15.5CM 4PCS/CTN
3ft: 915*123*93mm
Inner box: 920*130*100mm 1 pcs/Box Outer box: 93.5*42*15.5CM 4PCS/CTN
4ft: 1219*123*93mm
Inner box: 1225*130*100mm 1 pcs/Box Outer box: 124*42*15.5CM 4PCS/CTN
