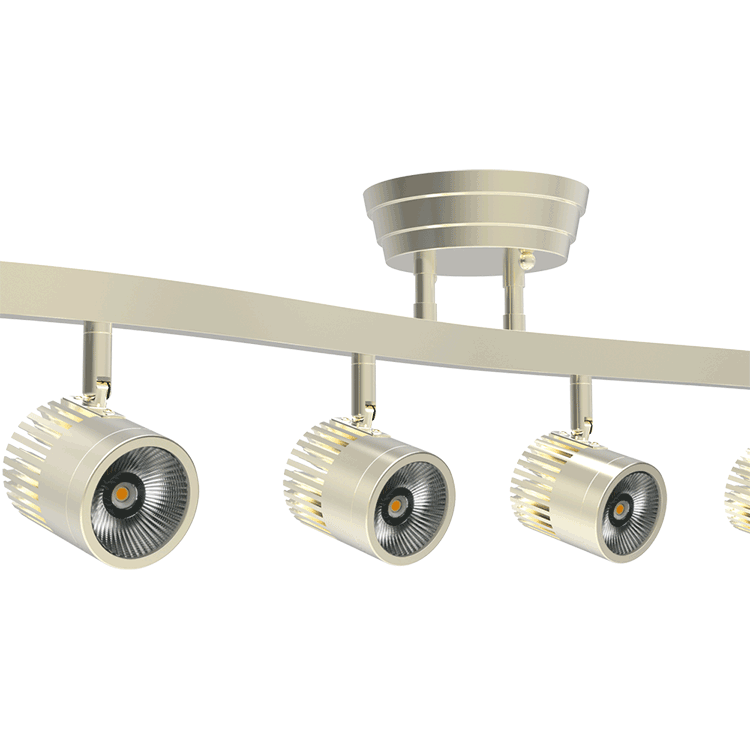

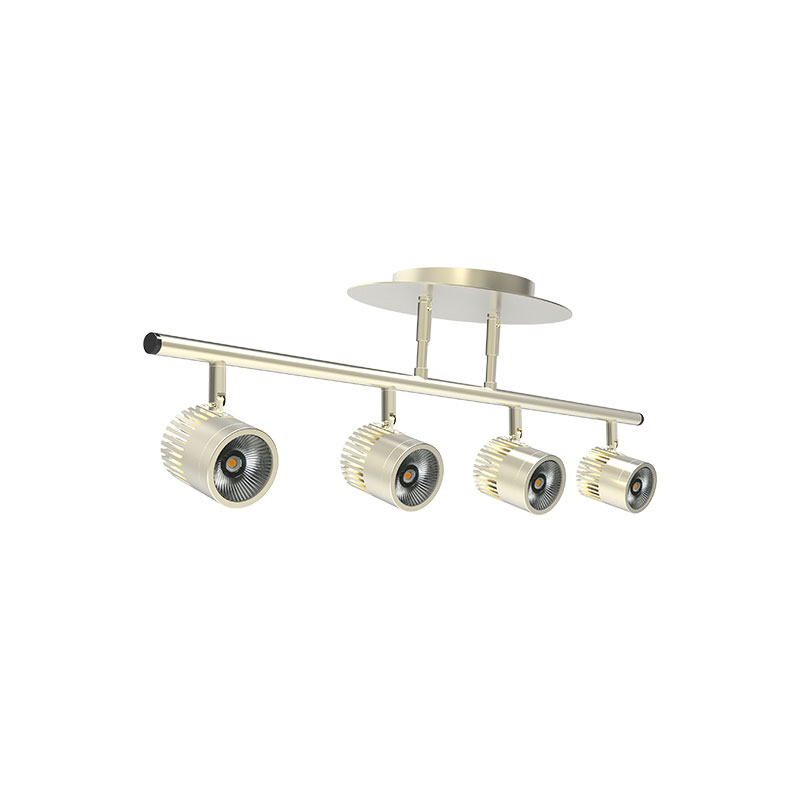

Line Volt. Die-casting LED COB Track Light 4 Head
ITEM No.： K3033-4C
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage : 32W/Lamp
Lumen : 2720 Lumen/Lamp
LED COB track light WITH CANOPY
LED Light Engine
- Color Temperature 2700K-6000K
- CRI 80+
- 3 Step MacAdam (3 SDMC)
- Passive aluminum heat sink
- 50,000 hrs average rated life
Electrical System
- 120V/277V 50/60Hz input
- Over voltage, over current and short circuit protection: Auto recovery
- MTBF > 100,000 hours
K3023-4C
Ceiling mounted single head
30 Watt/Lamp
2550 Lumen/Lamp
Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
Dimming
Track Dimming
- (ELV) reverse phase control dimmers. 120V only.
- Dimmable 100 – 10%
Canopy Dimming
- ELV Dimming 120V
- 0-10V Dimming 120V or 277V
Compatibility
Track luminaire is designed for use with the following track systems:
- Single Circuit/Single Neutral 120V
- Two Circuit/Single Neutral 120V (No Dimming)
- Two Circuit / Two Neutral 120V
- Two Circuit / Two Neutral 277V
Mounting
Mounts to a standard 4” square or octagon junction box
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
K3033-4C
|
liteharbor | 659 KB | 237 |
