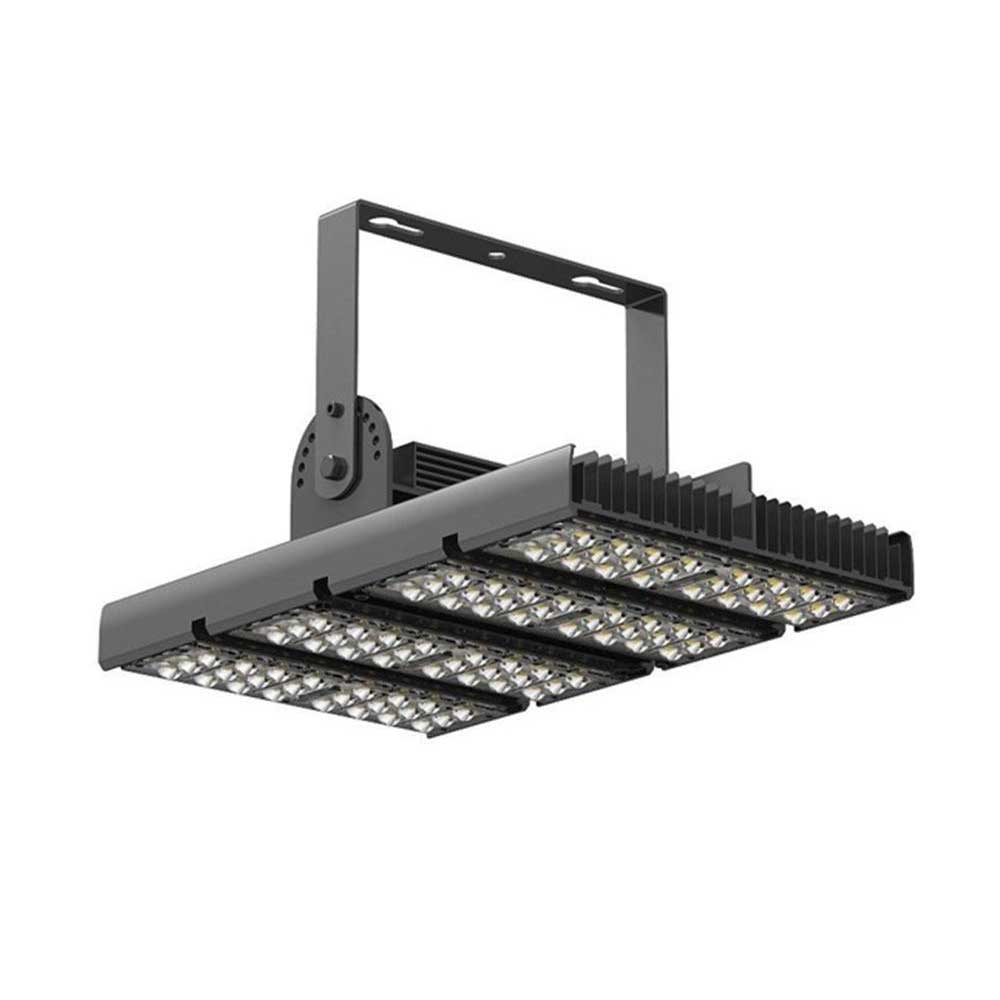

LED Tunnel Lights Square 120W
ITEM No.： TN-003
Light Name : LED tunnel lighting
Wat : 120W max
Material : Aluminum
Life Span : 50000 hours
ODM & OEM : Acceptable
Description
High Luminous 120W Outdoor Epistar / Bridgelux LED Tunnel Light 10200 – 10300LM For Bulletin, Billboard
High Power 120W Outdoor LED Tunnel Lighting, Meanwell Driver, AC85-265V Input, Epistar and Bridgelux
120W Outdoor LED Tunnel Lighting Description:
Adopting 72 PCS of High power LEDs, patent cooling system and high efficiency Waterproof UL approval Meanwell power supply, 120W Outdoor LED Tunnel Lighting is featured with super bright, high efficiency, excellent optic distribution, high optic uniformity, low optic attenuation, excellent appearance and long lifespan. It is widely used in tunnel application.
120W Outdoor LED Tunnel Lighting Features:
High efficiency Waterproof IP65 Meanwell power supply.
High luminous efficiency with 45mil High Power LED Chips
Excellent Heat Dissipation Design to slow down the degradation of LED and keep long lifespan.
Long lifespan 50,000 hours and extremely low maintenance cost.
IP65, suitable for outdoor billboard lighting.
Environment-friendly, Lead-free and Mercury-free, CE and RoHS compliant.
Working area including workshops, exhibition halls, gymnasiums, gas stations, toll stations, etc.
New style, slim and perfect extrinsic feature
Specification
| Rated Voltage | AC85-265V 50-60HZ |
| Total Harmonic Distortion (THD) | ≤9% |
| Power Factor | >0.9 |
| Power Efficiency | >83% |
| Operation Voltage | DC30-36V |
| LED Chips | Epistar/Bridgelux |
| LED Quantity | 96 PCS High Power LEDs |
| LED Power | 120W |
| System Power | 129W |
| LED Efficiency | 100LM/W |
| Light Efficiency | >80% |
| Uniformity | >0.5 |
| Led Initial Flux | 10200-10300LM |
| Color Temp. | 2700-7000K |
| CRI | >70 |
| Junction Temp. | <80℃ |
| Operation Temp. | -40~+55℃ |
| Storage Temp. | -25~+65℃ |
| Protection class | IP65 |
| Lamp Shell Color | Black |
| Dimension | 298*430*145mm |
| Waterproof Rating | IP65 |
| Wiring(Default) | Brown->L, Blue->N, Yellow & Green->G |
| Packing Dimension | 52cmx37cmx46cm |
| Lifespan | >50000H |
| Warranty | 3 Years |
| Certificate | CE,RoHS |
Applications
Bulletin, billboard, Canopy, building wall washing and other general flood lighting.
