Office Lighting High Performance 55W LED Linear Up and Down Light With POE Solution
Item No: DG0704-B
Wattage:40W/55W
Voltage : 120V/277V AC
Length : 4 Foot
Dimmable : RF2.4G/0-10V Dimming
Certification : ETL listed

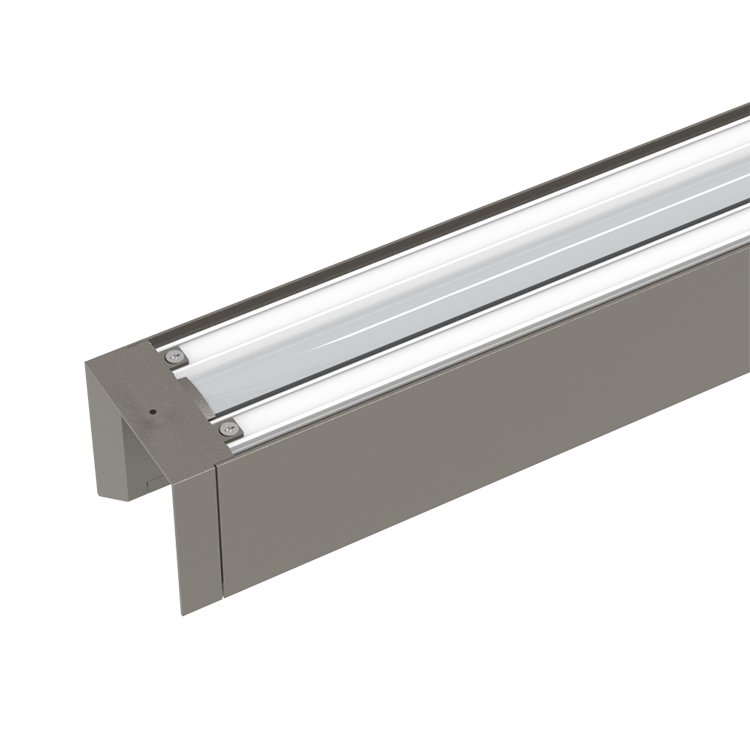

High Performance LED Linear Up and Down Light
FEATURES
– Simple elegant linear fixture suitable for high end offices, lounges, retail space and showrooms.
– Invisible LED source, produces high quality illumination with CRI>80/90.
– Integrated 0-10V or SCR dim driver for even greater energy saving.
– Simple pendant installation with aircraft cable.
– Adaptable hardware convert individual fixtures to linkable light for continuous run.
– High-quality optical design, lights upward for unique ambient lighting,and effcient down light for task lighting.
DETAILS
| Item No. | DG0704-B |
| Energy (W) | 40W/55W |
| OPptical Distribution | OD 75/25 | 75%up/25%down |
| Finish | SBK/SG/SWH |
| Voltage | Universal |
| CRI | 80/90 |
| Dimmable | Non-Dim/0–10 V Dim 120–277 V/RF2.4G |
| CCT | 2700K/3000K/3500K/4000K |
| Installation Selection | Structure or remodel/Remote/Drywall/The Wire |
| RemoteControls (Optional) | Multifunction Remote Controller/Microwave Motion Sensor |
| Size | 4ft |
Driver
High Efficiency,High Power Factor, Low THD, Flicker Free Wireless Dimmable.
Communication Protocol: RF2.4G -Controllable Distance: >30 Meters(Without Obstacle)
-Control Method: Remote Controller,86 Control Panel Sensors
-Dimming Range: 3%-100%
-One Output: Dimmable Driver
-Two Output: Dimmable &Color-temp Adjustable Driver
Advantages of PoE Solution
Liteharbor’s Lighting adopt Cat 6/Cat 7/Cat 8 Ethernet Cable with UL Listed.PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.. PoE lighting uses Power over Ethernet technology to connect, monitor, and control LED light fixtures used in smart building solutions. Smart PoE lighting reduces installation and operating costs by more than half and helps building owners meet wellness and sustainability goals.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
