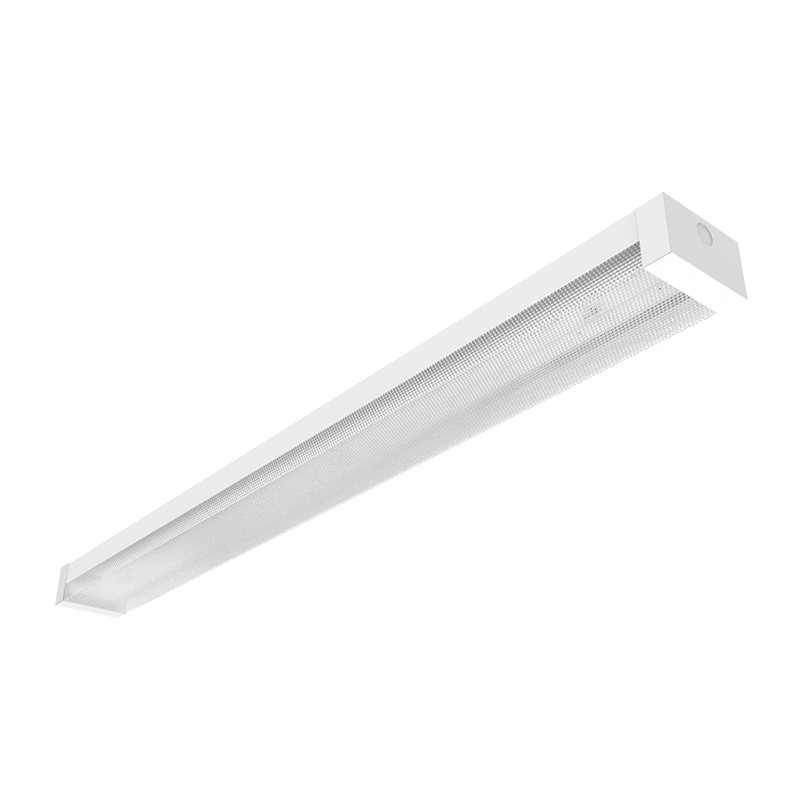

8FT High End Surface Mounted 40W/80W LED Wraparound Light Parking Light
ITEM No.： WP-8
Power : 40W/80W
Voltage : 120V ~ 277V AC
CRI : 80+/90+
Dimmable : NONE/0-10V
Certification : ETL listed
Length : 4ft/8ft
Features
WP-46/WP-86 is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance linear light,
is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
Beam Angle: 180 °.
Available in 1×4 and 1×8 models.
Emergency system is available.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Standard dimming control: 0 ~ 10 v dimming.
IP Grade:IP44
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Application: suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Warranty: 5-year limited warranty on LED and Driver.
Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.
Light Source
Using the energy-saving highlighting 2835 SMD LED light source.
Distributed LED array in a variety of lumen output packages.
LED color is available in 2700-6500K. Module is replaceable.
Mounting
Luminaires may be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.
Driver
Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.
Specification
| Power | 40W/80W |
| Voltage | 120V ~ 277V AC |
| Frequency | 50/60Hz |
| CRI | 80+/90+ |
| Dimmable | NONE/0-10V |
| Power Factor | >0.98 |
| CCT | 2700-6500K |
| Certification | ETL listed |
| Lifespan | 50000 H |
Packing
Inner box: 140*80*1225mm 1 pcs/Box Outer box: 124*29.5*18.5CM 4PCS/CTN
