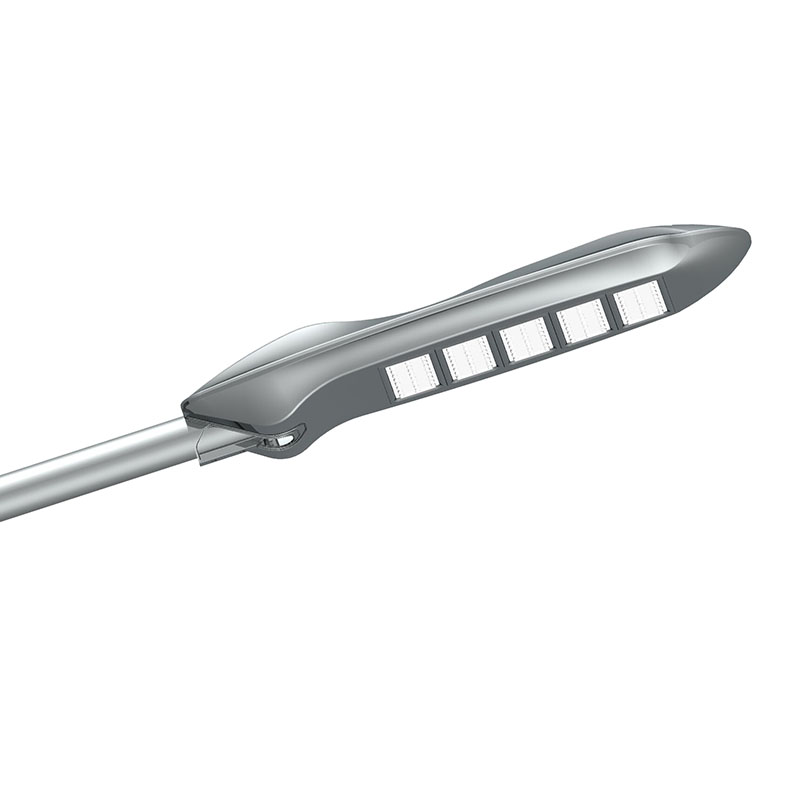

ETL High Power LED Street Light
ITEM No.: DG5103
Product Series : LED Street Light
Light Source : LED
Wattage : 200W Max.
ODM & OEM : Acceptable
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Description
Specifically designed for road lighting needs to optimize
the design of a new type of environmental protection and
energy saving products which meet the special requirements
of the road.
This product uses CREE high power LED light source.
Features
The smooth linear and the LED structure characteristic organic combination,Appearance simplicity
and comfortable,The concept design of the humanized structure of the lamp.
Excellent self cleaning function,Curve shape design,Simple, delicate and smooth,Good self cleaning
function,make the light body surface clean,To maintain good heat dissipation effect, to ensure the life
of LED.
High pressure die casting aluminum alloy (ADC12) integral forming,With sufficient strength and good
seismic performance,At the same time, the whole lamp protection level is good, reaching IP65.
Unique two light distribution design, the lost light curve is a bat wing, the standard rectangular light spot,
to ensure that the light distance in the 40M can achieve good uniformity.
Long life power supply to ensure that the service life of 50000 hours or more, with the short circuit protection
open circuit protection, thermal protection and other multiple protection functions,to achieve synchronization
with the LED lamp life.
Details
Wattage: 90/120/150/160/200W
Input Voltage: AC90-305V 47-63Hz
Power Factor: >0.95
CRI>75
Working Temperature: -30 — 50°C
CCT: Warm white2850-3200K
IP Rating:IP65
Life Span>5,0000Hours
Class:CIASS I
Dimensions:750X419.5X120mm
Mounting:Cantilever mounting
Application
Suitable for urban major road,secondary road,sidewalk residential zones,
Industrial area,square,park,school,Villa courtyard etc.
Other Special Requirements please Confirm with Factory
Listing/Warranty
ETL Listed to US and Canadian standards for wet locations.
5 Year LED Limited Warranty
