Commercial LED Recessed Multiple Downlight 4 lights Villa Lighting
ITEM No.: G4014-B
Series : LED Multiple Downlight
Light Source : COB LED
Input volt : 120V-277V
CCT : 2800-6000k
Trim : Flanged Trim/ Trimless
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Description
Easy Installation and maintenance
All parts and components accessible from below the ceiling
Lamp holders are adjustable 360° horizontal and 30° vertical for spot lighting in multiple directions
Actual adjustment may vary depending on the lamp beam spread
Housing
The inner trim is constructed of 22GA steel
Finish can be black, white or silver
Special finish please confirm with factory
Internal wire bundles and locked and covered with a glass sleeve
Junction box can be accessible from below the ceiling with a plate
Mounting Frame
Can be accommodate a 1/2″ to 1 1/4″ ceiling thickness
Channel bracket allow up to 5″ vertical adjustable
Universal mounting brackets included
Compatible with C-channel, flat bar, and EMT
C-channel are recommended for T-bar ceilings
Bar hangers must be ordered separately
Flanged Trim
Extruded trim frame includes torsion springs for convenient installations or removal from the housing
Trimless

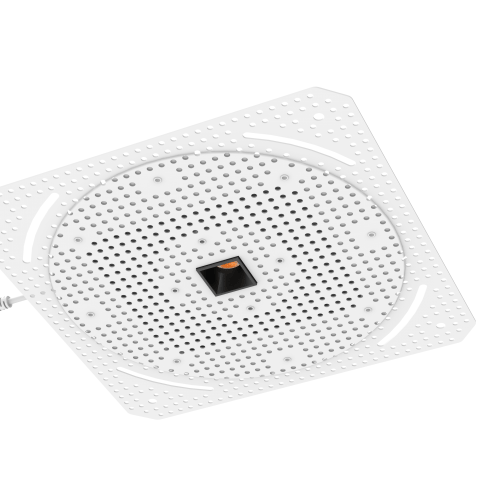

Optional mud frame available for trimless mounting
The perforated mesh frame provided adheres to joint compound for seamless and trimless mounting
LED Light Engine
2800-6000k
CRI>80%
LED mounted to die-cast/extruded aluminum heat sink
50000 hours average rated life at 70% lumen
Electrical System
120-277V input
Class 2 power supply
Over voltage, over current and short circuit protection
Auto recovery
10% dimmable is available 120V only
10/15/17.8/20W each lamp
Light Efficiency:70-80lm/W(Consult with our factory)
Item |
Lamp Q’ty (PCS) |
Wattage (W) |
Lumen (LM) |
Color Temperature (K) |
DGL-GA2011C |
1 |
20 |
1400 |
2800-6000k
|
DGL-GA2012C |
2 |
40 |
2800 |
|
DGL-GA2013C |
3 |
60 |
4200 |
|
DGL-GA2014C |
4 |
80 |
5600 |
|
DGL-GA2010C |
4 |
80 |
5600 |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | G401X-B | liteharbor | 217 KB | 600 |
