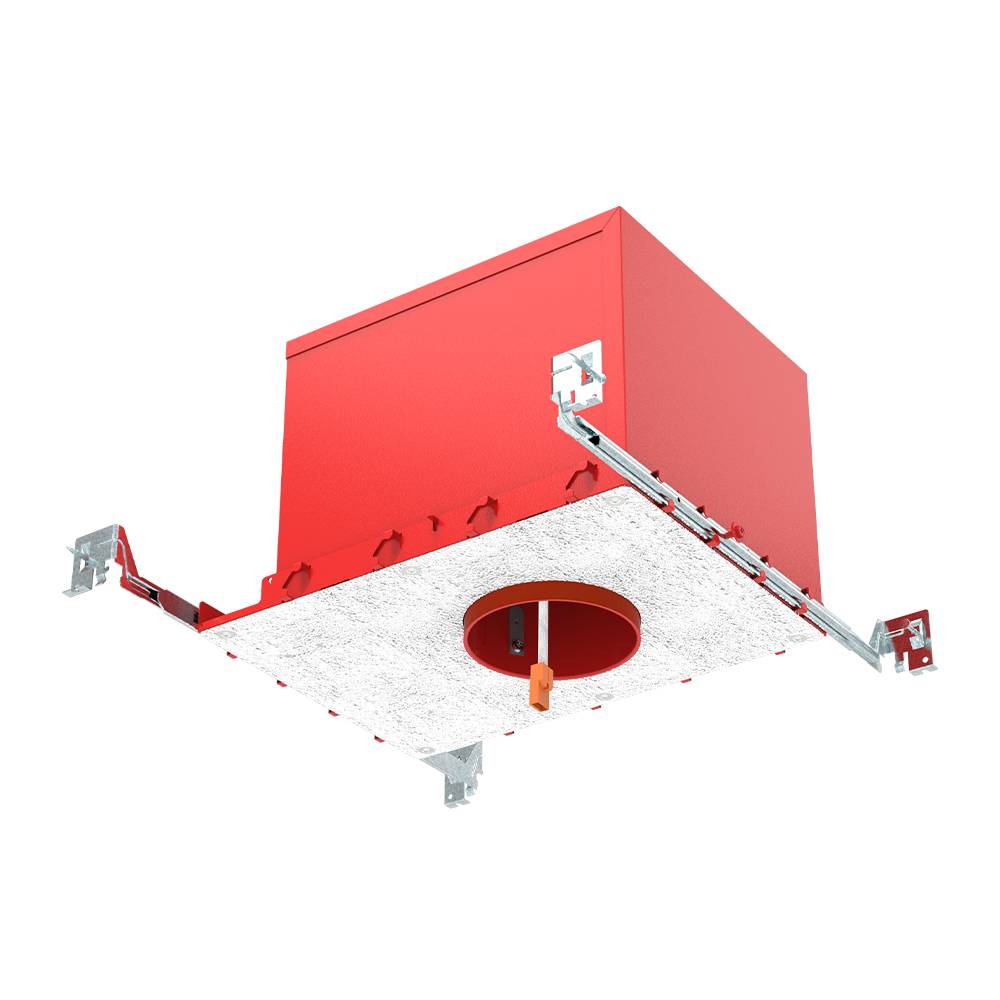

4″NEW CONSTRUCTION FIRE RATED IC AIRTIGHT DOWNLIGHT HOUSING
ITEM No.：A4-IA-F
Input : 120V
Size : 4 inch
Socket :LED quick connector
Light Source : LED Lamp
Listing :UL listed
Feature
₋2 Hour Fire Resistance to meet and exceed strict fire safety codes.
₋Rated for direct contact with IC insulation.
₋E26 Edison base socket Or LED quick connector provided.
₋UL Certificates ASTM E283 certified Air Tight.
₋Type IC rated for direct contact with insulation;
Type non-IC insulation should be kept minimum 3” away from all sides of fixture.
Junction Box：
Pre-wired #21 gauge galvanized steel junction box with (7) 1/2” knockouts and (4) Romex® knockouts and removable plates.
Housing:
Unit:mmDie formed #21 gauge galvanized steelconstruction, Up to 120 minutes fire rated L500 (floor-ceiling) & P500 (roof-ceiling) design.
Hanger Bars:
Pre-installed #21 gauge adjustable bar hangers (14”-24”) for wood joist or t-bar ceiling installations.
Installation:
Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber,and Laminated Beams. Integral T-bar slots for easy installation in T-Bars.
Spans up 24″ and can be repositioned 90°.
Score lines allow for tool-free hanger bar size reduction.
Integral leveling flange allows forsingle-person installation while easily aligning the housings with the joists.
Applications
Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail. Especially in areas with limited ventilation, such as closets and utility rooms.
Listing / Warranty
UL listed to US and Canadian standards for damp location W/Feed through. IC rated, Airtight ASTM-E283 Certified, UL 263 certificated up to 2 hour ratde.
3 Year Limited Warranty.
