Manufacturer 4″ POE Lighting Fire Rated LED Slim Panel Light
ITEM No.： BL4-301-EFR-A
Shape : Round
Input Voltage : 24V(PoE Scheme)
Lumen : 900lm
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K/3CCT
Beam Angle : 108 Degree
Lifespan : 100000 HoursLED Mini Spotlight
Manufacturer 4″ POE Lighting Fire Rated LED Slim Panel Light
Liteharbor Lighting Manufacturer Supplies with 19 Years LED Lighting Fixture Manufacturing Experience.
All Parst Make in Houes To Achieve Better Quality Control.
Support OEM and ODM Solution Services.
Only Support Brands, Wholesalers and Distributors.
Free Sample boxes are available.
DESCRIPTION

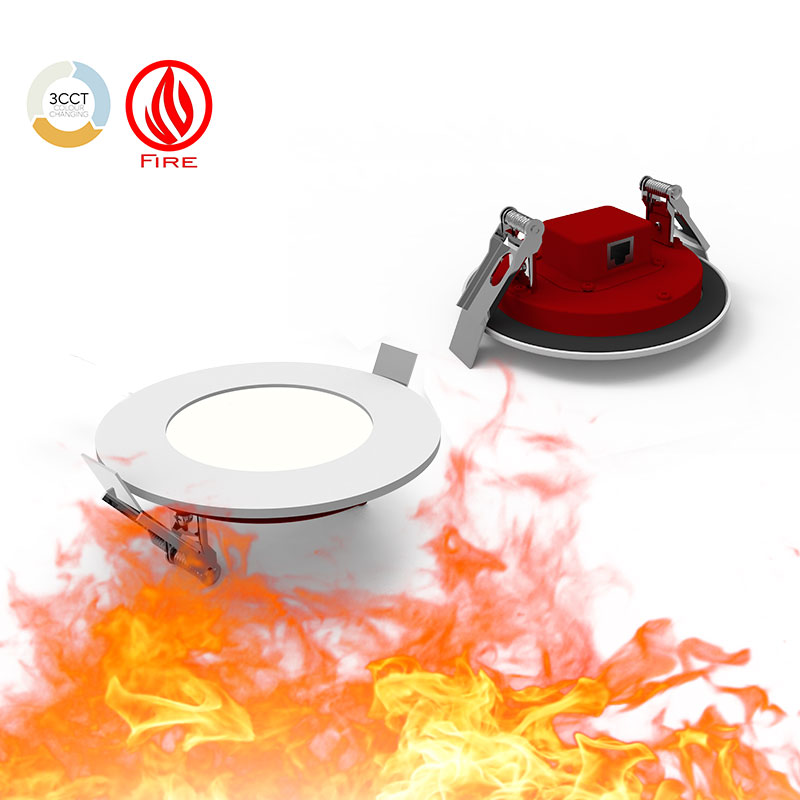

The concave lens design of Liteharbor Prisa series fire rated slim panel light creates muted illumination to enhance residential or commercial spaces without sacrificing brightness. With 2 Hour Fire Resistance to meet and exceed strict fire safety codes with only 1/2” clearance, this ultra thin fire rated recessed LED panel is absolutely perfect for tight spaces, soffits and insulated and dropped ceilings. This LED is 9 watts and replaces a 45 watt halogen Save up to 80% energy for same light output.The thin fire rated panel light profile with spring clips allows for quick and easy installation. Ideal for confined spaces and suitable for damp locations.
Upgrade your lighting to our Fire Rated Slim Panel, designed for safety and performance. With a 2-hour fire rating, this panel is built to withstand high temperatures and prevent the spread of fire. Our Fire Rated Slim Panel is also damp location.
FEATURES
- PoE scheme or LED quick connector provided.
- Available in all 4″ round openings.
- Retrofit or New Construction.
- 1/2″ Thin – Install Directly Under Joists, Maximum Layout Flexibility.
- Robust, durable and lightweight.
- 3CCT range changeablen,3000K, 4000K and 5000K ,convenient inventory and cost savings.
- No Flickering, noise or RF interference
- Easy to install to suspended ceiling grids
- No UV, IR or Mercury
- Anti-glare
SPECIFICATION
| DESCRIPTION | BL4-301-EFR-A | BL4-301-EFR-B | BL4-301-EFR | ||||||||||||||||||||||||
| Wattage | 9W | 9W | |||||||||||||||||||||||||
| Luminosity | 900lm | 900lm | |||||||||||||||||||||||||
| Luminous Flux | 900lm | 900lm | |||||||||||||||||||||||||
| Lumens / Watt | 100lm/w | 100lm/w | |||||||||||||||||||||||||
| CRI | 90+ | 90+ | |||||||||||||||||||||||||
| Colour Temperature | 3000K, 4000K, 6500K/3CCT(3000K-4000K-5000K) | 3000K, 4000K, 6500K/3CCT(3000K-4000K-5000K) | |||||||||||||||||||||||||
| Driver Input | 24V | 120V AC or 120V-277V AC 50/60 Hz | |||||||||||||||||||||||||
| Power Factor | – | 0.98 | |||||||||||||||||||||||||
| Dimming | RGB+W / Tunable White | TRIAC Dimmers 10%-100% (120V only) | |||||||||||||||||||||||||
| Location | Insulated Ceiling & Damp Locations | Insulated Ceiling & Damp Locations | |||||||||||||||||||||||||
| Finish | White,Black,Satin Nickel | White,Black,Satin Nickel | |||||||||||||||||||||||||
| Dimensions | ∅4.72”* H 1.29” | ∅4.72”* H 1.15” | |||||||||||||||||||||||||
| Wire | Cat5/Cat6 | FT4/FT6 | |||||||||||||||||||||||||
| Working Temperature | -20°C to +60°C | -20°C to +60°C | |||||||||||||||||||||||||
| Working Humidity | 10% – 70% | 10% – 70% | |||||||||||||||||||||||||
| IP Rating | 20 | 20 | |||||||||||||||||||||||||
| Input Current | – | 0.7A | |||||||||||||||||||||||||
| Output Current | – | 360mA | |||||||||||||||||||||||||
| Power Efficiency | >90% | >90% | |||||||||||||||||||||||||
| UGR | <18 | <18 | |||||||||||||||||||||||||
| Beam Angle | 120° | 120° | |||||||||||||||||||||||||
| THD | <20% | <20% | |||||||||||||||||||||||||
| Installation | Recessed Ceiling Mount | Recessed Ceiling Mount | |||||||||||||||||||||||||
| Lifespan | 50,000 Hours at 70% Light Output | 50,000 Hours at 70% Light Output | |||||||||||||||||||||||||
| Executive Standard | ETL/ENERGY STAR | ETL/ENERGY STAR | |||||||||||||||||||||||||
| Warranty | 5 Year Limited for Fixture & Driver | 5 Year Limited for Fixture & Driver | |||||||||||||||||||||||||
MOUNTING
Cut hole in ceiling and snap fixture in opening with attached spring clips. 2″ above ceiling clearance required for driver.
APPLICATIONS
- hospitality
- Retail
- Kitchens
- hotels
- Museum
- indoor / outdoor residential,
- offices
- Commercial
- shopping mall stores
LISTING / WARRANTY
- ETL to US and Canadian standards for damp location W/Feed through.
- 5 Year Limited Warranty.
