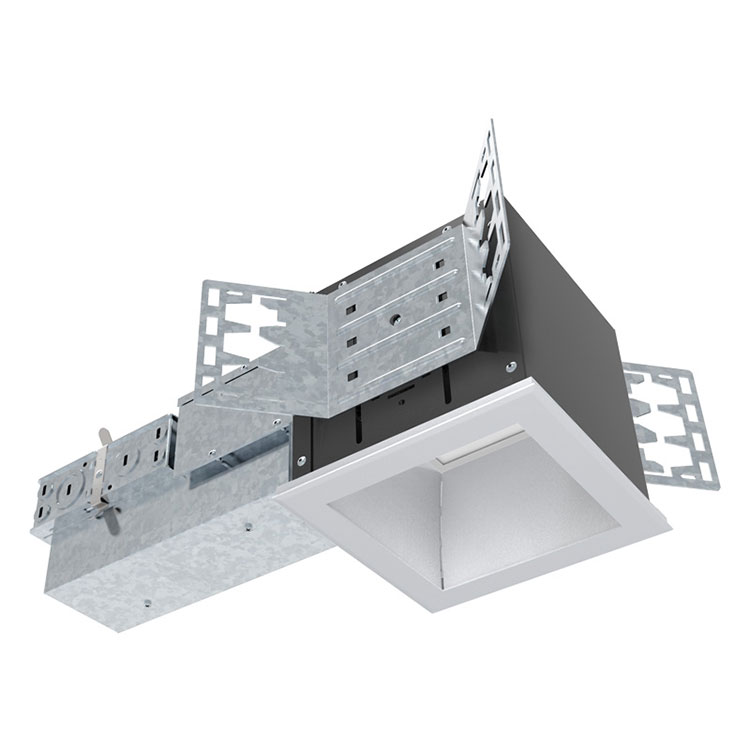

Light Project 4″ Architectural LED Commercial Downlights Factory
ITEM No.: AL4-FS
Power : 12/18/24W
Voltage : 120V/277V/120-277V
Power factor : PF>0.98
CRI : 80+CRI/90+CRI
Beam angle : 60°, 90° optional
Dimmable : NONE/0 ~ 10v dimming
Lifespan : 50000H
Certification : ETL
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Features
Architectural LED luminaire, iron shell spray production, with anti-corrosion shell. Emergency system is available.
Isolated power supply, safe and without flicker.
LED light source using high quality, high lumen and high CRI LED bead.
Square emitting surface, with uniform light distribution, high luminous efficiency. Energy saving, long lifespan even without maintain.
New generation of cold light source, save power, excellent casting performance with far and high light casting compare to common fluorescent and energy saving lamp.
Specification
Power | 12/18/24W |
Voltage | 120V/277V/120-277V |
Lumen | 3000/2500 LM |
Power factor | PF>0.98 |
CRI | 80+/90+ |
Beam angle | 60°, 90° optional |
Dimmable | NONE/0 ~ 10v dimming |
CCT | 2700K/3000K/4000K/5000K/6000K |
Certification | ETL |
Lifespan | 50000H |
Lampshade
Aluminum fog reflective reflector, high light uniformity.
With marbles design mode, the overall height of the size is controlled, smooth appearance, excellent visual effects.
Light Source\ Radiator
High light transmittance, strong light diffusion performance, no shadow no glare.
Point light source emitting turned into spherical light emitting.
Milky white light transmission rate reach 90% above.
Excellent concealed light source, achieve the best light transmission rate without seeing the LED lamp bead.
Outstanding heat dissipation aluminum material, the temperature is guaranteed to be the touch temperature below.
Locating Part
Locating part, easy for installation,will not cause abnormal phenomena such as deformation. Resolved the problem of product is not centered.
Application
Warehouse, office, hallway.
Packing
Inner box:410*155*145MM 1pcs/CTN
Outer box:42.5*46.5*30.5CM 6pcs/CTN
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | AL4-FS | liteharbor | 346 KB | 276 |
