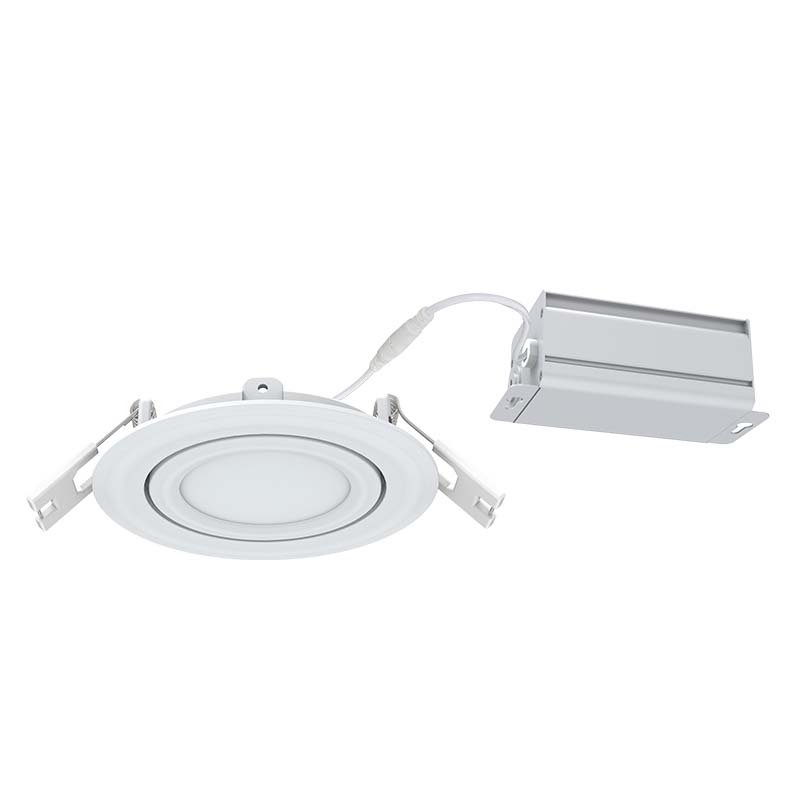

3″ Trimmed or Trimless Gimbal LED Recessed Panel Light
ITEM No. : BL3-007
Size: 3 Inch
Wattage: 6W
CCT: 2700K-6000K
Dimmable: YES
Listing: ETL listed
Features
– The 6W super-thin gimbal recessed panel light is a high performance, easy installation of the residential lighting. Provides a good light output, good light, smooth and soft, high efficiency and energy saving.
– Using aluminum casting, good heat dissipation, simple and beautiful modelling of appearance.
– Dimmable, good compatibility matched with multi-brand dimmers, dimming stable and even, no strobe.
– Easy installation and time-saving, tool-free, no housing.
– New construction optional.
– The innovation type gimbal panel light, adjustable lighting direction, meet the demand for multiple lighting.
Mounting
Cut hole in ceiling and snap fixture in opening with attached spring clips. 2″ above ceiling clearance required for driver.
Specification
Applications: Recessed Ceiling Mount
Wattage: 6W
Light Output: 390lm
CRI: 80+/90+
CCT: 2700K-6000K
Driver Input: 120V AC 50/60 Hz
Power Factor: >0.9
Dimming: TRIAC Dimmers 10%-100% (120V only)
Location: Insulated Ceiling & Damp Locations
Lifespan: 50,000 Hours at 70% Light Output
Certification: ETL/ENERGY STAR
Warranty: 5 Year Limited for Fixture & Driver
Trim: Trimmed or trimless
Packing
Inner Box Size: 125X105X80 mm 1PCS/Box
CTN Size: 39.5X26.5X33 cm 24PCS/CTN
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
BL3-007
|
liteharbor | 297 KB | 248 |
