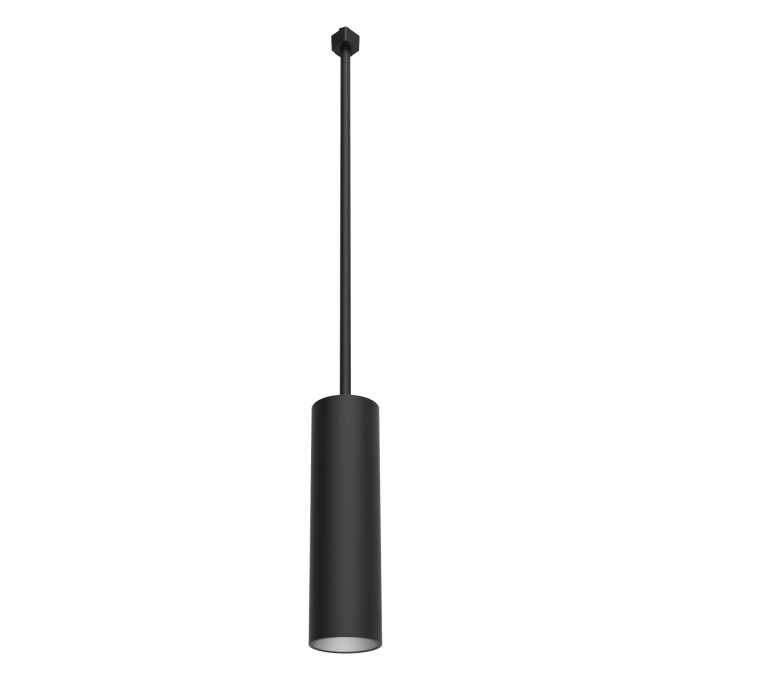

J/H/L Track System Villa lighting 3CCT Cylinders LED Track Pendants
ITEM No.： AL35-VA-FM
Series : LED Pendant Downlight
Wattage : 10W/16W/20W
Light Source : LED
CCT : 2700-6000K
Shape : Cylinders
Features
– Sleek, high performance pendant complements pendant downlighting family.
– Unique flush, surface mount design allows for precise alignment and adjustment.
– All aluminum construction, powder coat painted in white, black or silver finish for harsh, weatherproof applications.
– 120V AC Direct technology in 10W, 16W or 20W dimmable modules with integrated circuit.
– Easy installation and ultra energy efficient.
– Dedicated 9° optic with field changeable 12°, 24°, 36° & 50° optics.
Specifications
Material: Die cast aluminum
Input Voltage: 120/277v 50/60Hz input
Wattage: 10/16/20W
CCT: 90 CRI & 80 CRI in 2700K, 3000K, 3500K and 4100K
PF: >0.98
Shape: Cylinders
| Material | Die cast aluminum |
| Input Voltage | 120V-277V 50/60Hz input |
| Wattage | 10W/16W/20W |
| CCT | 2700,3000K,3500K,4000K,5000K,6000K,3CCT |
| PF | >0.98 |
| CRI | 80+/90+ |
| Mounting | Track Pendant Mount |
Mounting
Pendant mounted.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
AL35-VA-FM
|
liteharbor | 170 KB | 287 |
