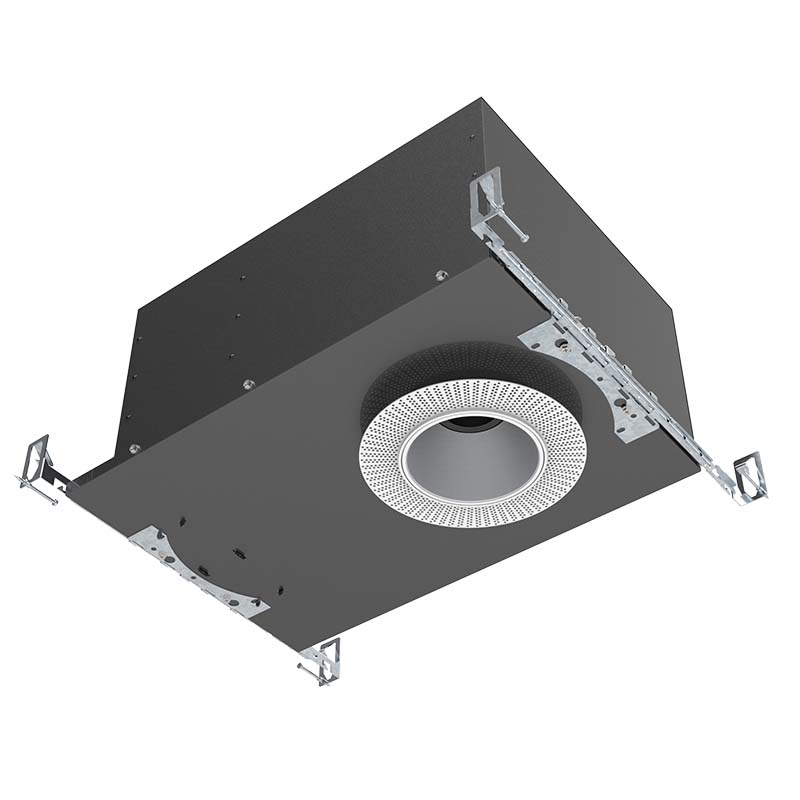

Light Project 3.5” COB LED Recessed Downlight with Emergency System
ITEM No.： A35-M
Downlight Name : COB Recessed Downlight
Downlight Size : 3.5 inch
Downlight Light Engine : COB LED
Downlight Wattage : 12 / 15 / 20 W
Downlight Lumens : 1000 1300 1600 Lumens
Description
3.5 inch LED recessed fixtures with round or square apertures offer energy-efficient, precision lighting for accent, task, or wall wash applications.
This type LED luminaire approximates the performance of 50W halogen, but at only 12-watts input, consumes just one-fourth the energy.
A feature enriched, small aperture downlight, the innovative design allows the LED to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim.
Vertical Downlight
With precision optics and adjustments, luminaires put exactly the right amount of light in precisely the right places.
Achieve different beam angles without replacing any parts.
Allow for 358 degree rotation.
Trimless is available.
Features
Separable rotating reflector design makes it easy for replacement.
Provide unique high-low lamp positioning with the simple twist of a screwdriver.
Optimize the design of emergency power supply to ensure the battery life.
Power supply using isolation scheme, driver can achieve high power factor and conversion efficiency, constant current output.
Universal 120V-277V driver with optional 0-10V standard dimming protocol.
Housing
Heavy duty black powder coated cold roll steel frame.
Designed for New Construction installation
Housing can be installed in 1/2″ to 1-3/8″ thick ceilings
Housing types include IC Air-Tight or Non-IC Rated (must specify).
Junction box and driver are located on opposite ends of the housing, with easy access for maintenance and installation.
LED Light Engine
Optional branded COB LED chips
Input AC 120V 230V 277V ( 90-305V is available)
12W 15W 20W
1000 1300 1600 Lumens
2700K, 3000K, 3500K, 4000K and 5000K at 80+ CRI
2700K, 3000K, 3500K, 4000K and 5000K at 90+ CRI
PF > 0.98
Dimmable options: NONE, TRIAC or RD 0-10V
LED mounted to die-cast / extruded aluminum heat sink w/ active cooling
50,000 hours average rated life at 70% output
Optics
12° Spot, 24° Narrow Flood and 36° Flood
Emergency Option
Remote test switch included.
Emergency driver operates LED load of up to 7.0 Watts at a maximum rated current (270 mA) for a minimum of 90 minutes.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through
5 Year Limited Warranty.
INSTALLATION
Housing types include IC Air-Tight, CCEA (Chicago Plenum), or Non-IC Rated (must specify). Non-IC rated housings must be kept at a minimum of 3” away from insulation.
Butterfly brackets and adjustable hanger bars (14”-25”) with integral nail included.
Butterfly brackets are compatible with C-channel, flat bar hanger and EMT. C-channel is recommended for T-bar ceilings.
C-Channel and flat C-Channel and flat bar hangers must be ordered separately.
PACKAGE
CTN Size: 490*390*223mm
1 PCS/CTN
