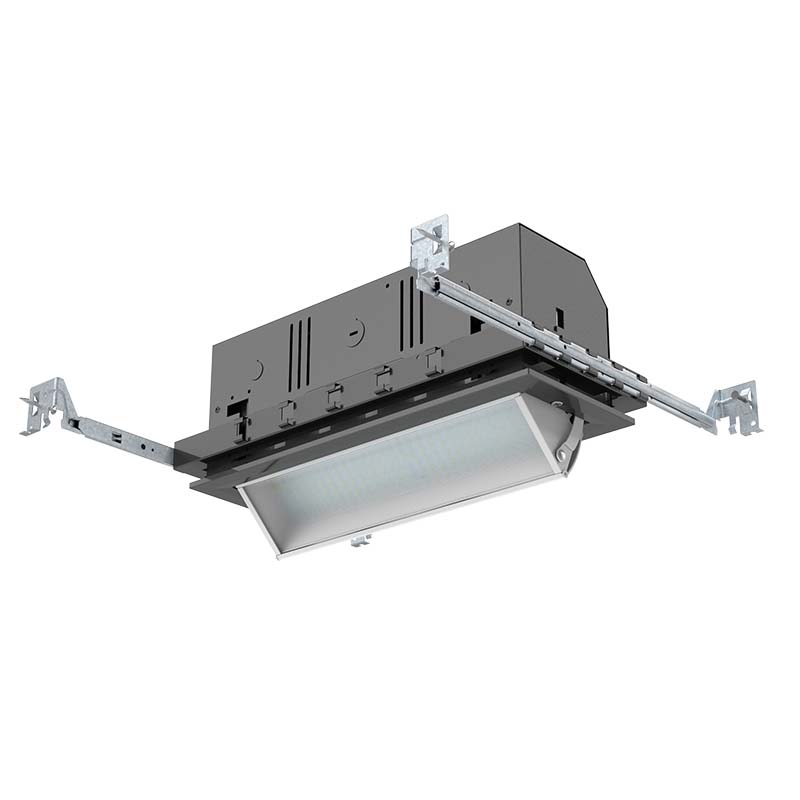

12″ Linear Wall Wash Multiple Recessed Downlight Gallery Light
ITEM No.： G4013-E-W
Downlight Function : Wall Wash
Downlight Series : Multiple Recessed Downlight
Downlight Shape : Linear
Application : Commercial
Description
Ideal for Retail, Hospitality, Lobby, Residential or Commercial Space
Break the Proportions and Limits of Spaces
No Unpleasant Dark Areas near the Ceiling
Enhance the Objects on the Wall
Makes the Room Appear Larger and More Spacious
It is Ideal for Creating a Visually Smooth, Flat Surface
Also be Ideal for Creating a Texted Surface
Features
High Power Linear LED Multiple Downlight
Aluminum Material Lamp Body + Gauge Steel Housing

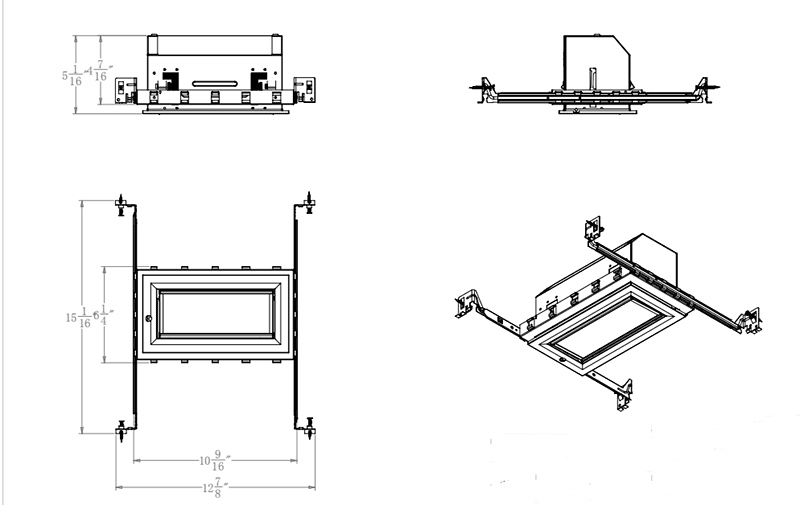

Available for 8”, 12” and 16” Dimensions
Accommodate to 1/2” to 1 1/4” Thick Ceiling
Allow Vertical 0~90 Degree Adjustment
Use Isolated Power Supply, Safe and Reliable
Compatible Multi Brand Dimmer, Stable Dimming, No Strobe
Finish: WH08, BK, SN, CH
Optical
Can be used in Combination with the General Lighting and High Contrast Versions
Solid White Light Led Modules are Available in 2700K-4500K
Input Voltage: 120V, 230V, 277V, 90-305V
High Power: 40W, 60W, 80W
CRI: 80+ / 90+
PF> 98%
LED Type: SMD
Dimmable Optional, TRIAC or NONE/RD 0-10V
Mounting
Embedded Installation
Use FT4 Wire with High Flame Retardant
4-Way Hanger Bar for Ease Installation
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
G401X-E-W
|
liteharbor | 198 KB | 232 |
