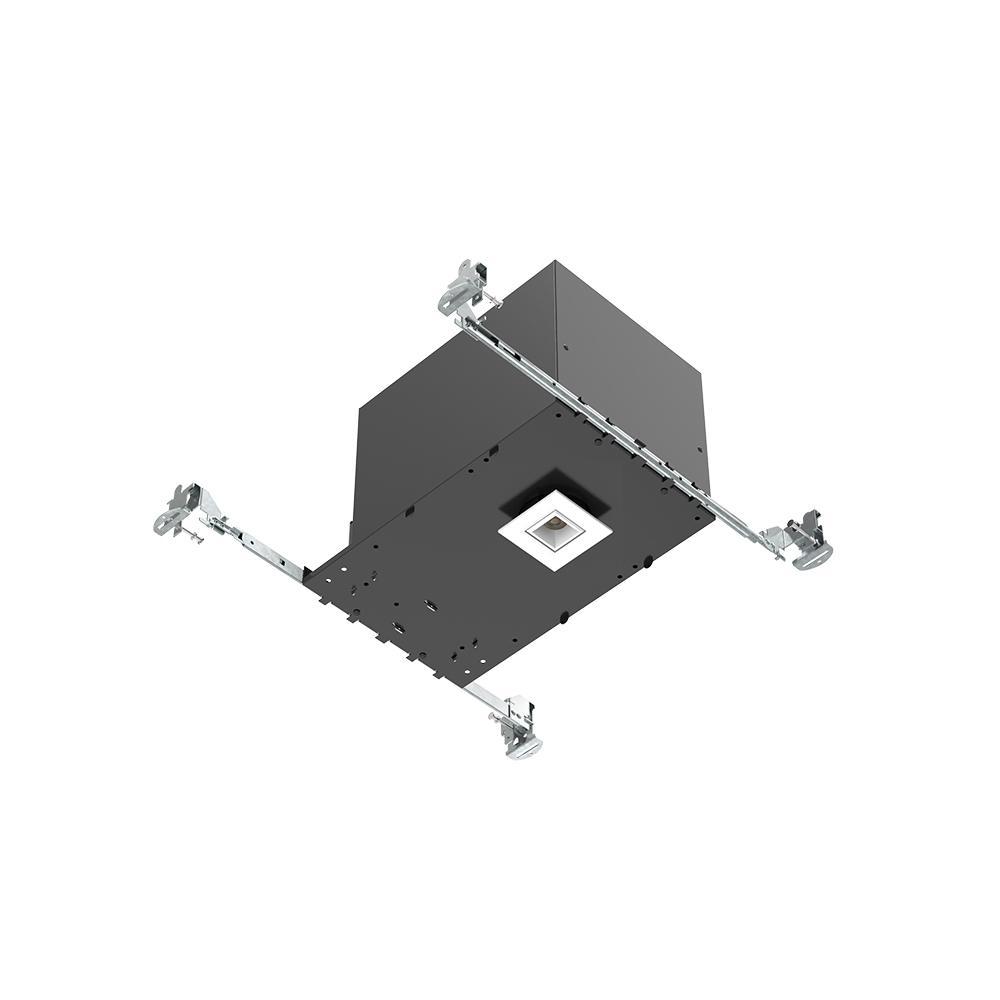

Light Project 1 Inch Square IC Airtight New Construction Miniature LED Recessed Downlight
/
/
/
/
/
Light Project 1 Inch Square IC Airtight New Construction Miniature LED Recessed Downlight

Features

– The simplified retrofit installation can be used in both new and existing spaces.

– IC Airtight for use with direct contact to insulation.

– 1 inch light-emitting surface.

– Beam Angle: 30/60/90 Degrees.

– Life Rated for 50,000 hours at 70% lumen maintenance.

– Easy installation for new construction and remodel applications.

Construction

– Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.

– Housing adjusts in frame to accommodate up to 1/2″ ceiling thickness.

– Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation

– Designed for ceiling plenums where 2×8 joists or taller are used.

– High strength hanger bars can easily be nailed to joists.

– Suitable for T-grid and drop ceiling applications.

Specification

– Source: LED COB Chips.

– Lumen maintenance: 50,000 hours L70 based on LM80 standardized test results.

– Optics: PC Lens for even lumen distribution.

– Material: Die-cast aluminum construction for lasting quality.

– Mounting: New construction installation or remodel installation

– Electrical: High efficiency electronic driver, rated at 50 000 hours

–  Heat dissipation: Superior Thermal Management by utilizing aluminum body as heat sink.

– Warranty: 3 year limited warranty.

Electrical

– High Efficiency driver with a power factor > 0.9.

Parameter

Voltage: AC/DC12V

Watt: 8W

Dimming: Non-dimming

Lumen: 800-1000lm

Light Source: COB

CRI: 80/90+

Beam Angle: 30D/60D/90D

CCT: 2700K-5000K

Finish: White/Black/Brown

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through.

3 Year Limited Warranty.

Applications

Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting and accent lighting.
